Start here

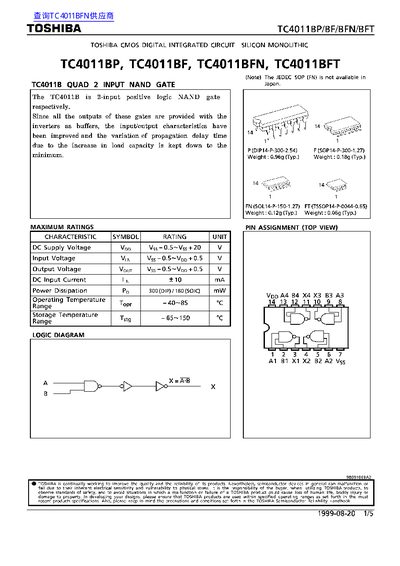

TOSHIBA TC4011BP/BF/BFN/BFT handbook
Datasheet 5 pages · 182 KB · EN
This document provides technical specifications for the Toshiba TC4011BP/BF/BFN/BFT family of CMOS digital integrated circuits. It describes the device as a Quad 2-Input NAND Gate with improved input/output characteristics due to buffer inverters.
The datasheet details maximum ratings, recommended operating conditions, static and dynamic electrical characteristics across various supply voltages (3V to 18V), and includes outline drawings for DIP, SOP, SOIC, and TSSOP packages.
Toshiba TC4011BP specifications
| Product Type | Quad 2-Input NAND Gate |
|---|---|
| DC Supply Voltage Range | 3 to 18 V |
| Operating Temperature Range | -40~85 C |
| Power Dissipation (DIP) | 300 mW |
| Input Capacitance | 7.5 pF |
All Toshiba TC4011BP documents by type
User Manual 1
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How much does a typical DIP14 package weigh?
A typical DIP14 package weighs 0.969 g.
