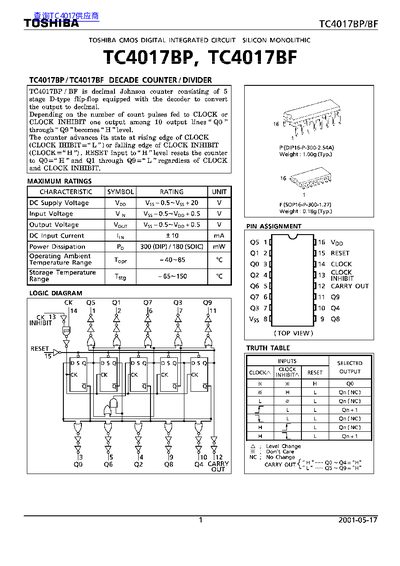

Toshiba TC4017BP/TC4017BF Decade Counter Datasheet
This document is a technical datasheet for the Toshiba TC4017BP and TC4017BF integrated circuits. These devices are decimal Johnson counters consisting of five-stage D-type flip-flops equipped with a decoder to convert outputs to decimal values (Q0 through Q9). The counter advances its state based on rising or falling edges of the CLOCK or CLOCK INHIBIT inputs.
Read onlineToshiba TC4017BP specifications
| Product Type | Decade Counter/Divider |
|---|---|
| Internal Structure | 5 stage D-type flip-flop with decoder |
| Min. Clock Pulse Width (Vcc=5V) | 40 ns |
All Toshiba TC4017BP documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What type of counter does the TC4017BP/TC4017BF implement?
The device is a decimal Johnson counter consisting of 5 stage D-type flip-flops equipped with a decoder.
How many output lines does the decade counter provide?
One of ten output lines, labeled Q0 through Q9, becomes high depending on the count pulses fed to the clock.
What type of counter does the TC4017BP/TC4017BF implement?
The device is a decimal Johnson counter consisting of five stage D-type flip-flops equipped with a decoder.
How many output lines does the decade counter provide?
One output among ten output lines labeled Q0 through Q9 becomes high depending on the count pulses fed to the clock inputs.
