Start here

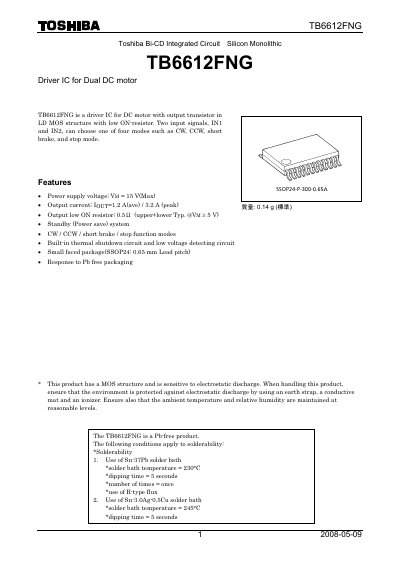

Toshiba TB6612FNG Driver IC Datasheet
The TB6612FNG driver IC from Toshiba provides dual DC‑motor control with four operating modes (CW, CCW, short‑brake, stop). It features a low‑ON‑resistance MOS output stage, built‑in thermal shutdown, low‑voltage detection, and a compact SSOP24 package.
The datasheet includes pin definitions, absolute maximum ratings, electrical characteristics, typical application schematics, package dimensions, handling guidelines, and usage restrictions for safety‑critical applications.
Toshiba TB6612FNG specifications
| Output current (continuous) | 1.2 A (typ) |
|---|---|
| Output current (peak) | 3.2 A (peak) |
| Power dissipation (Pp) | 0.89 W |
| Operating temperature range | -20 °C to 85 °C |
| Package type | SSOP24‑P‑300‑0.65A |
All Toshiba TB6612FNG documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the continuous output current rating?
The IC can continuously source 1.2 A per channel.
What soldering temperature should be used for Sn‑37Pb solder?
Use a solder bath temperature of 230 °C for Sn‑37Pb solder.
How many input signals control the motor driver?
Two input signals (IN1 and IN2) select forward, reverse, short‑brake, or stop modes.
What is the maximum supply voltage for the device?
The maximum supply voltage (VM) is 15 V.
