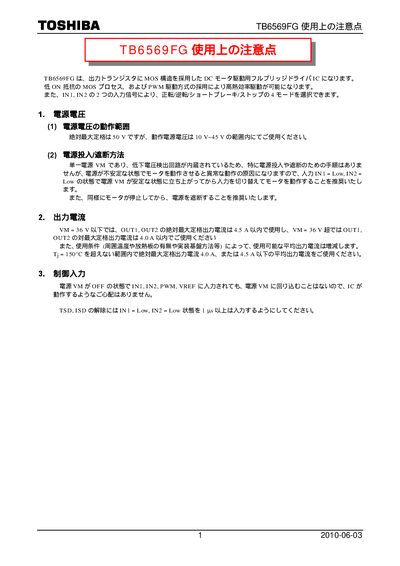

Toshiba TB6569FG User Manual
User Manual 14 pages · 287 KB · JA
The Toshiba TB6569FG is a full‑bridge driver IC for DC motor control that uses a MOS‑structure output transistor. It supports four operation modes (forward, reverse, short‑brake, stop) via two input signals and offers PWM speed control.
The manual provides recommended supply voltage ranges, output current limits, PWM frequency guidelines, recommended external components, and safety precautions such as over‑current detection and thermal design. This manual is written in Japanese.
Toshiba TB6569FG specifications
| Recommended operating supply voltage range | 10 V – 45 V |
|---|---|
| PWM frequency range | ≤ 100 kHz |
| Recommended pull‑up resistor for ALERT pin | 10 kΩ – 100 kΩ |
| Recommended external resistor for RSGND pin | ≥ 0.1 Ω |
| Junction‑to‑ambient thermal resistance (example) | 89.3 °C/W |
| Maximum power dissipation (example, VM=24 V, I=0.5 A) | 0.417 W |
Source: Toshiba TB6569FG User Manual
All Toshiba TB6569FG documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the recommended operating supply voltage range for the TB6569FG?
Use a supply voltage between 10 V and 45 V.
What PWM frequency range is supported by the TB6569FG?
The device supports PWM frequencies up to 100 kHz.
