Key facts
- Brand
- Texas Instruments
- Model
- TPS2220A
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-07
Start here

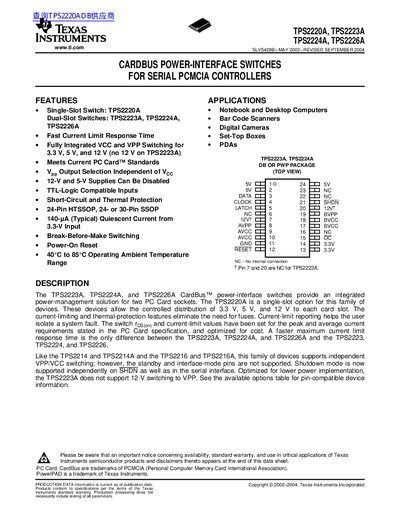

TEXAS INSTRUMENTS TPS2220A TPS2223A TPS2224A TPS2226A handbook
The document details the Texas Instruments TPS222x family of CardBus power-interface switches designed for serial PCMCIA controllers. These devices provide an integrated solution for distributing 3.3 V, 5 V, and 12 V to single or dual card slots while eliminating the need for external fuses through built-in current-limiting and thermal-protection features.
The datasheet specifies electrical characteristics, absolute maximum ratings, recommended operating conditions, and logic section parameters. It covers various package options including DB-24, DB-30, and HTSSOP (PowerPAD), along with ordering information for lead-free and green compliant devices.
Texas Instruments TPS2220A specifications
| Operating Ambient Temperature | -40°C to 85°C |
|---|---|
| Quiescent Current (typical) | 140 µA |
| Maximum Continuous Power Dissipation (DB‑24) | 890 mW |
| Thermal Shutdown Trip Point | 135 °C (hysteresis 10 °C) |
| Package Types | 24‑pin HTSSOP, 24‑ or 30‑pin SSOP, DB‑24, DB‑30, PWP‑24, PWP‑30 |
All Texas Instruments TPS2220A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What voltage levels do these switches support?
The devices allow the controlled distribution of 3.3 V, 5 V, and 12 V to each card slot.
From: TEXAS INSTRUMENTS TPS2220A TPS2223A TPS2224A TPS2226A handbook
Do these switches require external fuses?
No, the current-limiting and thermal-protection features eliminate the need for fuses.
From: TEXAS INSTRUMENTS TPS2220A TPS2223A TPS2224A TPS2226A handbook
What is the purpose of the TPS2220A?
It is a single‑slot CardBus power‑interface switch that distributes 3.3 V, 5 V, and 12 V to a PC Card slot and provides current‑limit and thermal‑protection features.
What is the thermal shutdown temperature of the TPS2220A?
The device trips at a thermal shutdown temperature of 135 °C with a hysteresis of 10 °C.
