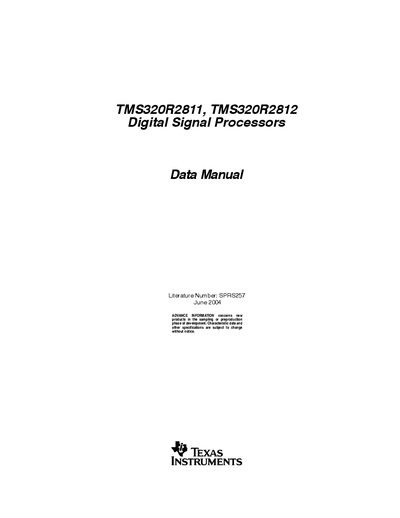

Texas Instruments TMS320R2811 / TMS320R2812 Digital Signal Processors Data Manual
This data manual covers the TMS320R2811 and TMS320R2812 digital signal processors. It includes a functional overview, memory map, pin assignments for multiple packages, and detailed descriptions of peripheral modules such as ADC, eCAN, McBSP, SCI, and SPI.
The document also provides electrical specifications, recommended operating conditions, current consumption graphs, and mechanical data including package dimensions and thermal resistance for the PGF LQFP and PBK LQFP variants.
Texas Instruments TMS320R2811 specifications
| Literature Number | SPRS257C |
|---|---|
| Revision Date | June 2006 |
| Package Options | GHH, ZHH, PGF, PBK |
| Package Options | PBK (128‑Pin LQFP) |
| Low‑Power Mode Frequency | 150 MHz SYSCLKOUT |
Source: TEXAS INSTRUMENTS TMS320R2811 TMS320R2812 Digital Signal Processors Data Manual
