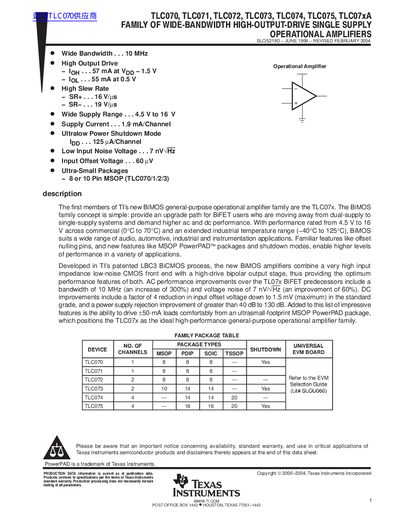

Texas Instruments TLC070 Operational Amplifier Datasheet
The TLC070 is part of TI's BiMOS general‑purpose operational amplifier family, offering a wide supply range (4.5 V‑16 V) and performance suitable for audio, automotive, industrial, and instrumentation applications. It features low input offset voltage, high output drive capability, and a compact MSOP PowerPAD package.
The document includes package options, pinout diagrams, absolute maximum ratings, recommended operating conditions, and detailed electrical and operating characteristics such as bandwidth, slew rate, noise, and supply current.
Texas Instruments TLC070 specifications
| Wide Bandwidth | 10 MHz |
|---|---|
| High Output Drive | 57 mA at VDD = 1.5 V |
| Supply Voltage Range | 4.5 V to 16 V |
| Input Offset Voltage | 60 µV |
| Supply Current per Channel | 1.9 mA |
