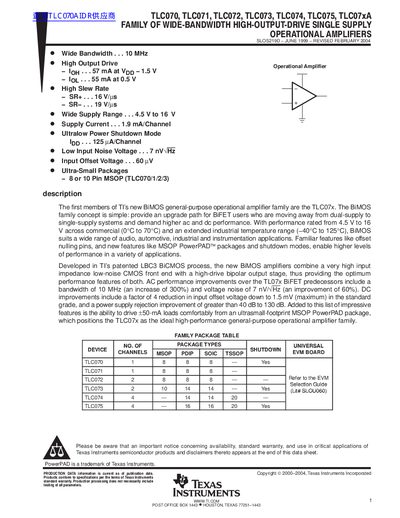

This document describes the features and characteristics of TI's new generation BiMOS general-purpose operational amplifier family, TLC07x.
The TLC07x series from Texas Instruments are BiMOS general‑purpose operational amplifiers offering a wide supply range (4.5 V to 16 V), high output drive (up to 57 mA), and a 10 MHz bandwidth. They are available in several ultra‑small packages such as 8‑pin MSOP, 10‑pin TSSOP and 14‑pin PDIP, with optional shutdown mode for low‑power applications.
The document provides detailed electrical characteristics, absolute maximum ratings, and package‑specific pinouts. It also includes dissipation tables, typical performance graphs, and ordering information for each device variant in the TLC07x family.
| Bandwidth | 10 MHz |
|---|---|
| High Output Drive (IOH) | 57 mA at VDD = 1.5 V |
| Slew Rate (SR+) | 16 V/µs |
| Supply Voltage Range | 4.5 V to 16 V |
| Supply Current (IDD) per channel | 1.9 mA |
| Shutdown Current (IDD‑SHDN) per channel | 125 µA |
| Input Noise Voltage | 7 nV/√Hz |
| Input Offset Voltage | 60 µV |
The TLC07x family provides a 10 MHz bandwidth.
They operate from 4.5 V up to 16 V (single‑supply) or ±2.25 V (split‑supply).
In shutdown mode the devices draw only 125 µA per channel.
The amplifiers can source up to 57 mA at a 1.5 V supply.
