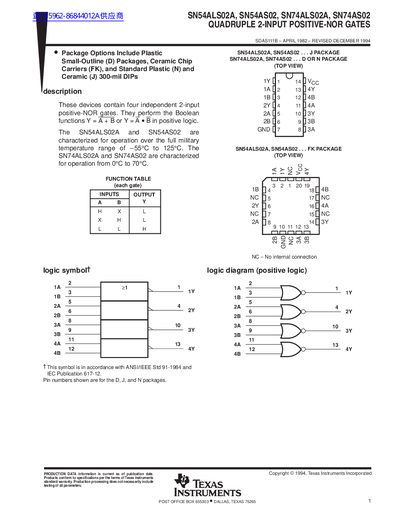

Texas Instruments SN54ALS02A/SN54AS02/SN74ALS02A/SN74AS02 Quadruple 2-Input Positive-NOR Gates Datasheet
The document describes the SN54ALS02A, SN54AS02, SN74ALS02A, and SN74AS02 devices, which contain four independent 2-input positive-NOR gates. These components perform the Boolean functions Y = A+B or Y=AeB in positive logic.
The datasheet details performance specifications for military-grade (SN54) and commercial-grade (SN74) variants across various package options including Plastic Small-Outline, Ceramic Chip Carriers, and standard DIPs. It includes tables for absolute maximum ratings, recommended operating conditions, electrical characteristics over temperature ranges, and switching characteristics with associated test circuit diagrams.
Texas Instruments SN74ALS02A specifications
| Number of Gates | Four independent 2-input positive-NOR gates |
|---|---|
| Boolean Function | Y = A+B or Y=AeB in positive logic |
| Military Temp Range (SN54) | -55°C to 125°C |
| Supply Voltage (VCC) | 4.5 V to 5.5 V |
| High-Level Input Voltage (VIH) | 2 V |
| Low-Level Input Voltage (VIL) | 0.8 V |
| High-Level Output Current (IOH) | -2 mA |
All Texas Instruments SN74ALS02A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the temperature range for SN74ALS02A?
The SN74ALS02A and SN74AS02 are characterized for operation from 0°C to 70°C.
What is the temperature range for SN54ALS02A?
The SN54ALS02A and SN54AS02 are characterized for operation over the full military temperature range of —55°C to 125°C.
What package types are available for these NOR gate devices?
They are offered in Plastic Small‑Outline (D), Ceramic Chip Carrier (FK), Standard Plastic (N) and Ceramic (J) 300‑mil DIP packages.
From: Texas Instruments SN54ALS02A SN54AS02 SN74ALS02A SN74AS02 Datasheet Handbook
