Key facts
- Brand
- Philips
- Model
- 190SW9
- Documents
- 2
- Languages
- EN · ZH
- Last added
- 2012-02-19
Start here

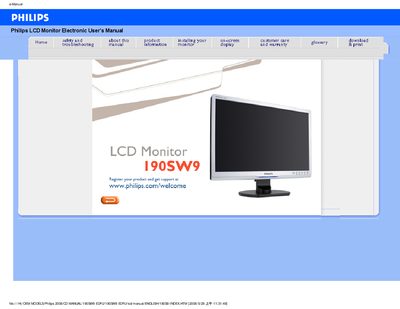

Philips 190SW9 EDFU LCD Monitor User Manual
This manual covers safety precautions, proper handling, and maintenance for the Philips 190SW9 EDFU LCD monitor. It explains how to install the monitor, adjust screen settings, and connect peripherals while highlighting important warnings to avoid electrical or mechanical hazards.
Additional sections describe common FAQs, troubleshooting steps, regulatory compliance, and detailed technical specifications such as power requirements, environmental limits, and pin assignments. The document also includes information on optional features like VESA wall‑mounting and Philips SmartImage technology.
Philips 190SW9 specifications
| Tilt | -5° to +20° |
|---|---|
| Power Supply | 100‑240 VAC, 50/60 Hz |
| Power Consumption | 36 W (typ.) |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -20 °C to 60 °C |
| Relative Humidity | 20 % to 80 % |
| MTBF | 50 000 hours (CCFL 40 000 hours) |
| Resolution | 1440 × 900 |
| Contrast | 50 % |
| Brightness | max. |
All Philips 190SW9 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What should I do if the screen shows “Cannot display this video mode” during installation?
Set the monitor to the recommended video mode of 1440 × 900 @ 60 Hz for the 19‑inch Philips display.
My monitor has no power and the Power LED does not light up. What should I check?
Make sure the AC power cord is connected between the monitor and the AC outlet.
When installing the monitor, the screen shows “Cannot display this video mode”. What should I do?
Set the video mode to 1440 × 900 @ 50 Hz: disconnect cables, adjust Windows display settings to 1440 × 900, set refresh rate to 60 Hz, then restart the computer and reconnect the monitor.
What does “refresh rate” mean for an LCD monitor?
For LCD monitors the refresh rate is not critical; a 60 Hz rate provides a stable, flicker‑free image, and higher rates such as 85 Hz do not produce a noticeable difference.
