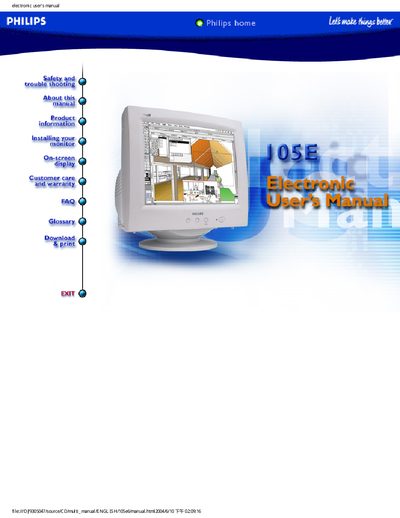

Philips 105E Monitor User Manual
This manual covers safety precautions, proper handling, cleaning, and maintenance for the Philips 105E CRT monitor. It warns against electrical shock, moisture exposure, and improper disassembly, and advises users to contact qualified service personnel for repairs.
The document also includes troubleshooting advice for common display issues, regulatory compliance details, product features, technical specifications, and a comprehensive FAQ that addresses auto‑calibration, signal problems, Moiré effect, and picture adjustments.
Philips 105E specifications
| Model Color Options | 105E69 Gray, 105E68 Black, 105E6 |
|---|---|
| Screen Size | 15‑inch (14.0" VIS) color CRT |
| Maximum Resolution | 1024 × 768 (horizontal up to 54 kHz) |
| Flicker‑Free Resolution | 800 × 600 at up to 85 Hz |
| Dot Pitch | 0.28 mm (horizontal 0.24 mm) |
| Tube Type | Shadow mask, flat square, 57 % light transmission |
| Phosphor | P22 |
Source: Philips 105E Monitor User Manual
All Philips 105E documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
My screen shows "NO SIGNAL", how can I get rid of this?
Check for bent pins on the video cable, ensure the computer is turned on, verify the VGA cable is properly connected, confirm the BNC/D‑Sub connector is correctly positioned, and make sure the video card is VESA‑standard compatible.
Why is there no picture on my monitor?
Check the wall socket for power, verify the power cable is securely attached, ensure the power button is on, unplug the monitor for about a minute and plug it back in.
How can I increase the color display of my monitor?
Install the latest video drivers or upgrade the video card’s memory; consult the computer or video‑card manufacturer for details.
