Philips GA-7VRX/GA-7VRXP Motherboard Installation Manual
This manual explains how to install the Philips GA-7VRX/GA-7VRXP motherboard, covering safety warnings, required tools, and the order of component installation. It includes detailed instructions for CPU, memory, expansion cards, cables, and power connections, as well as precautions for handling sensitive circuitry.
Later sections describe BIOS setup options, hardware monitoring features, RAID support, and reference specifications. Appendices list technical terms, support contacts, and regulatory compliance information. This manual is written in Chinese.
Philips GA-7VRX specifications
| Form factor | ATX (30.5 cm x 23.5 cm) |
|---|---|
| CPU socket | AMD Socket A (Athlon/XP/Duron) |
| AGP slot | 1 AGP slot, supports 4×/2× and AGP 2.0 |
| PCI slots | 5 PCI slots, 33 MHz, PCI‑2.2 compliant |
| IDE interfaces | 2 IDE bus master (ATA 66/100/133), supports 4 ATAPI devices |
| Ethernet controller | Integrated RTL8100BL |
Source: Philips GA-7VRX/GA-7VRXP Motherboard Installation Manual
All Philips GA-7VRX documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals

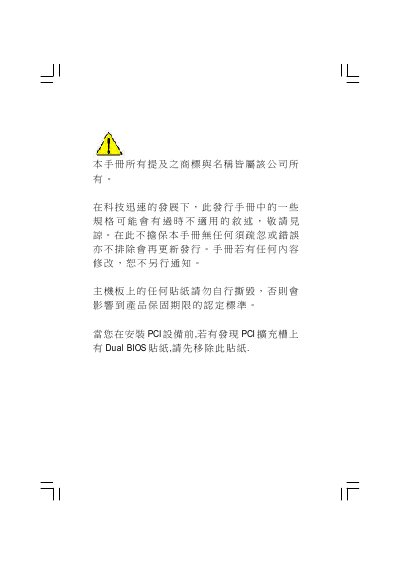

What must be removed before installing a PCI device?
The Dual BIOS sticker on the PCI slot should be removed before installing any PCI device.
From: Philips GA-7VRX/GA-7VRXP Motherboard Installation Manual
Which CPU families are supported by this motherboard?
It supports AMD Athlon, Athlon XP and Duron processors for Socket A.
From: Philips GA-7VRX/GA-7VRXP Motherboard Installation Manual
How many PCI slots does the GA-7VRX/GA-7VRXP motherboard have?
The motherboard provides five PCI slots.
