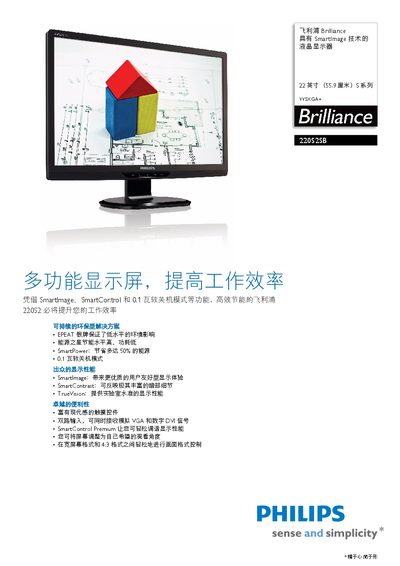

Philips 22092SB LCD Monitor User Manual
This manual introduces the Philips 22092SB 22‑inch LCD monitor, highlighting its SmartImage, SmartPower, SmartContrast, and TrueVision technologies that enhance image quality and reduce energy consumption. It also details the dual input options (VGA and DVI) and touch‑control interface for convenient operation.
Technical specifications are listed, including panel type, size, brightness, contrast, response time, and power consumption, as well as environmental certifications such as EPEAT Silver and Energy Star 5.0. Installation dimensions, weight, and operating conditions are also provided. This manual is written in Chinese.
Philips 22092SB specifications
| Panel size | 22 inches / 55.9 cm |
|---|---|
| Aspect ratio | 16:10 |
| Pixel pitch | 0.282 x 0.282 mm |
| Brightness | 250 cd/m² |
| Contrast ratio | 500,000:1 |
| Response time | 5 ms |
| Native resolution | 1680 x 1050 @ 60 Hz |
| Viewing angle | 176° (H) / 117° (V) |
| Color depth | 16.7 million colors |
| Power consumption (active) | 12 W |
| Standby power | <0.1 W |
| Dimensions (with stand) | 416 mm × 505 mm × 201 mm |
| Weight (with stand) | 4.18 kg |
| Operating temperature | 0 °C to 40 °C |
| Storage temperature | -20 °C to 60 °C |
| MTBF | 50,000 hours |
All Philips 22092SB documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the standby power consumption of the Philips 22092SB/93 monitor?
The standby power consumption is less than 0.1 W.
What input connections are available on the monitor?
The monitor provides dual inputs: an analog VGA connector and a digital DVI connector.
