Start here

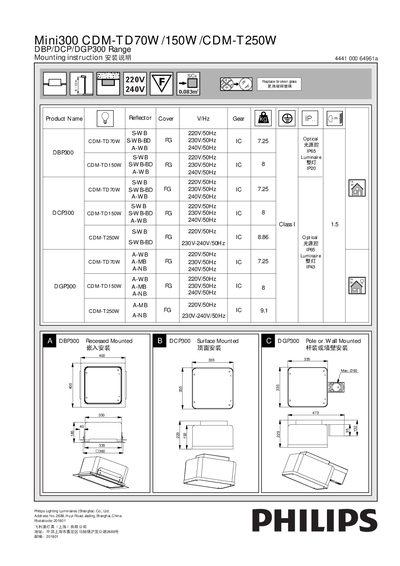

Philips Mini300 CDM‑TD70W/150W/CDM‑T250W DBP/DCP/DGP300 Installation Guide
This document provides step‑by‑step mounting instructions for the Philips Mini300 range of luminaires. It details the procedures for recessed (DBP300), surface (DCP300), and pole or wall (DGP300) installations, including required ceiling cutout dimensions and positioning guidelines.
Safety and electrical notes are included, such as the requirement to use the correct voltage setting (230 V for 230 V operation) and the prohibition of covering recessed luminaires with insulating material. Cable specifications and IP ratings are also specified.
Philips 150W specifications
| Operating Voltage | 220V/230V/240V 50 Hz |
|---|---|
| IP Rating | IP65 |
| Cable Type | 60245 IEC57 3‑pole 1.5 mm² multi‑core with rubber insulated layer |
Source: Philips Mini300 CDM‑TD70W/150W/CDM‑T250W DBP/DCP/DGP300 Installation Guide
All Philips 150W documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What voltage should be used when the operating voltage is 230 V?
Connect the luminaire to the 230 V position instead of the 240 V position.
From: Philips Mini300 CDM‑TD70W/150W/CDM‑T250W DBP/DCP/DGP300 Installation Guide
Can a recessed luminaire be covered with insulating material?
No, a recessed luminaire must not be covered with insulating matting or similar material.
From: Philips Mini300 CDM‑TD70W/150W/CDM‑T250W DBP/DCP/DGP300 Installation Guide
What traditional lamp can the Philips Nano 150W replace and how much energy is saved?
It can replace a traditional 400 W high‑pressure sodium lamp, saving about 70 % of the power consumption.
From: Philips Nano 150W Ceramic Street Light Product Leaflet
What is the IP protection rating of the lamp?
The lamp has an IP65 rating, providing protection against dust and water.
From: Philips Nano 150W Ceramic Street Light Product Leaflet
