Start here

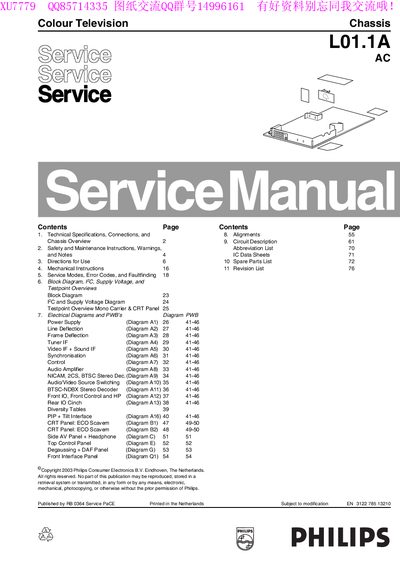

Philips L01.1A Service Manual
The Philips L01.1A Service Manual provides detailed technical specifications, connection diagrams, and a chassis overview for the colour television. It includes block diagrams, test‑point overviews, and electrical schematics for the power supply, deflection, tuner, video, audio, and control sections.
Safety and maintenance instructions are given, with warnings, recommended service intervals, and step‑by‑step fault‑finding procedures. The manual also contains a spare‑parts list, revision history, and notes on component values and service precautions.
Philips L01.1A specifications
| Mains voltage | 90‑276 V or 150‑276 V |
|---|---|
| Power consumption | 52 W (20") to 120 W (36") |
| Standby power consumption | < 3 W |
| Audio output (Stereo) | 2 × 1 W or 2 × 5 W |
| Ambient temperature range | +5 °C to +45 °C |
Source: Philips L01.1A Service Manual
All Philips L01.1A documents by type
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What safety precautions must be taken when repairing the TV set?
The set must be connected to AC power via an isolation transformer, safety components must be replaced with identical ones, and safety goggles should be worn when replacing the CRT.
What is the standby power consumption of the L01.1A TV?
The standby power consumption is less than 3 W.
What is the voltage range for the European version of the TV?
The European version operates on 220V‑240V AC.
