Key facts
- Brand
- Philips
- Model
- BGP310
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-03-12
Start here

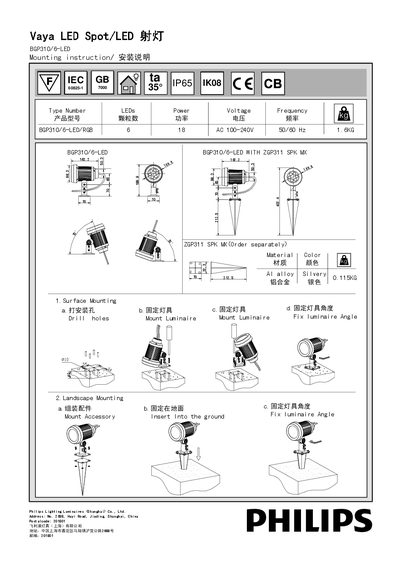

Philips BGP310/6-LED Spotlight Installation Manual
This manual provides step‑by‑step mounting instructions for the Philips BGP310/6-LED spotlight, including drilling holes, fixing the luminaire, and adjusting its angle. It also details the required waterproof junction box (IP65) and the recommended cable routing.
Electrical safety guidelines require a qualified electrician, compliance with IEE or national codes, and prohibit powering the fixture before complete installation. DMX input wiring follows the ESTA standard or Philips iPlayer3 controller pinout, and the maximum DMX chain length is 100 m with up to 32 fixtures. This manual is written in Chinese.
Philips BGP310 specifications
| Power | 2.15W |
|---|---|
| Voltage | 24V DC |
| LED count | 1 |
| Material | Al alloy |
| Power cord size | 2×1.0mm² |
Source: Philips BGP310/BGP311 LED Spotlight Installation Guide
All Philips BGP310 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
Who should install the Philips BGP310/6-LED spotlight?
The luminaire must be installed by a qualified electrician in accordance with the latest IEE or national electrical regulations.
Can the external cable of the spotlight be replaced if damaged?
No, the external cable cannot be replaced; if it is damaged the luminaire must be destroyed.
What voltage is required for the Philips BGP310/BGP311 LED spotlight?
The luminaire operates at 24 V DC.
From: Philips BGP310/BGP311 LED Spotlight Installation Guide
Who should install the Philips BGP310/BGP311 luminaire?
Installation must be performed by a qualified electrician.
From: Philips BGP310/BGP311 LED Spotlight Installation Guide
