Start here

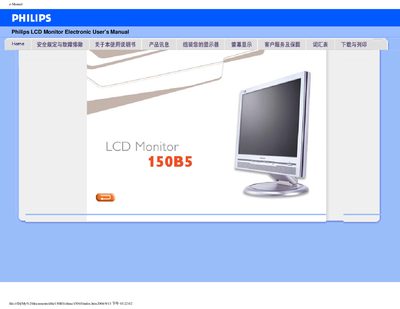

Philips 150B5 LCD Monitor User Manual
This electronic user manual provides safety guidelines, installation instructions, and operating procedures for the Philips 150B5 LCD monitor. It includes warnings about temperature, humidity, vibration, and proper cleaning, as well as troubleshooting tips for common issues.
The document also details the monitor’s technical specifications, pixel defect policy, warranty information, and how to configure features such as the built‑in speakers, VESA mounting, and sRGB color mode. This manual is written in Chinese.
Philips 150B5 specifications
| Panel size | 15 inch |
|---|---|
| Native resolution | 1024 × 768 (XGA) |
| Maximum resolution | 1024 × 768 @ 75 Hz |
| Response time | 16 ms (typical) |
| Video inputs | Analog VGA and DVI |
| Audio input | Analog (VGA, DVD, PC) |
| Power consumption | 19 W (typical) |
| Dimensions (with stand) | 342 × 322 × 209 mm |
| Weight | 2 kg |
| VESA mount | 100 × 100 mm |
| Tilt range | -5° to +25° |
| Height adjustment | 70 mm |
| MTBF | 50,000 hours |
| Operating temperature | 5 °C to 40 °C |
All Philips 150B5 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the native resolution of the Philips 150B5CB monitor?
The monitor’s native resolution is XGA 1024 × 768.
Which video inputs are available on the Philips 150B5CB?
It supports both analog VGA and DVI inputs.
What is the recommended operating temperature range?
The monitor can operate between 5 °C and 40 °C (41 °F‑104 °F).
How many pixel defects are allowed before the warranty applies?
For the 150B5, up to 4 bright‑pixel defects or 4 dark‑pixel defects are permitted; any more requires service under warranty.
