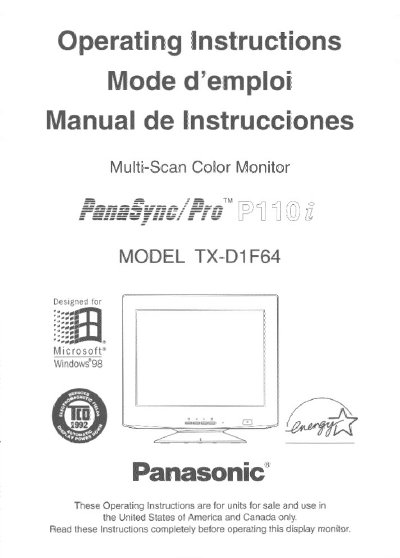

Panasonic PanaSync/Pro P110i Monitor Manual

Brand: Panasonic
Category: Monitor
Document type: User Manual
Language: English
Pages: 50
File format: PDF
File size: 2 MB
Published: 08 August, 2012
Updated: 20 August, 2012
Models: TX-D1F64, P110
MD5 checksum: 02BD9BFEB4E9FC765DD63142A241046C
PDF: Panasonic PanaSync/Pro P110i Monitor Manual PDF

About this manual

This document provides operating instructions for the Panasonic TX-D1F64 Multi-Scan Color Monitor. It includes important safety notices regarding power cord selection and FCC compliance, as well as precautions for installation and usage to ensure safe operation.

What's inside

Precautions
Installation
Usage
Product Care
Features
Specifications
Operation
Trouble Shooting

Specifications

Resolution	1,600 x 1,200 at 115 kHz max.
Resolution	1,800 x 1,440 at 105 kHz max.

Frequently asked questions

What type of power cord is required for the United States and Canada?

For units mounted on a desk or table, type SVT or SUT cord sets may be used. For units which sit on the floor, only SJT type cord sets may be used.

What type of power cord plug is required for use in the United States and Canada?

The male plug must be a NEMA 5-15 style that is UL listed and CSA labelled.

What is the maximum current rating for a unit using an 18 AWG cord?

The maximum current rating for the unit is 10 Amps.

What cleaning solution is recommended if the monitor surface is very dirty?

You should use neutral detergent such as dishwashing detergent mixed with water.
