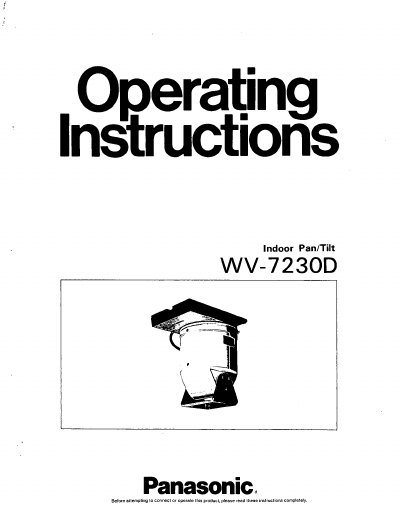

Panasonic WV-7230D Indoor Pan/Tilt Operating Instructions
This manual provides operating instructions for the Panasonic WV-7230D indoor pan/tilt unit. The unit allows for remote control of camera panning and tilting when used with the WV-CU254 System Controller and WV-RC100 Indoor Receiver. It can be ceiling mounted or bracket mounted to any flat surface.
Read onlinePanasonic WV-7230 specifications
| Panning range | 340° |
|---|---|
| Tilting range | 90° (45° above or below the center position) |
| Panning speed | 7°/sec. |
| Tilting speed | 4°/sec. |
| Maximum power consumption | less than 11W |
Source: Panasonic WV-7230D Indoor Pan/Tilt Operating Instructions
All Panasonic WV-7230 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Can the WV-7230D be mounted outdoors?
No, the unit is designed for indoor use only.
From: Panasonic WV-7230D Indoor Pan/Tilt Operating Instructions
What is the maximum humidity level for operation?
The unit should not be used when humidity is above 90%.
From: Panasonic WV-7230D Indoor Pan/Tilt Operating Instructions
Can the WV-7230 be mounted outdoors?
No, the unit is designed for indoor use only.
What is the maximum humidity level for operation?
The unit should not be used when humidity is above 90%.
