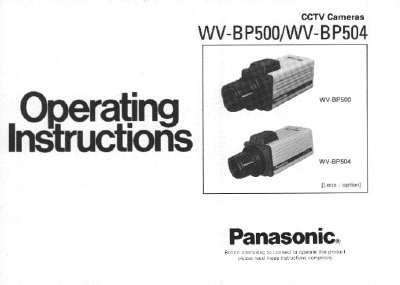

Panasonic WV-BP500/WV-BP504 CCTV Camera Operation Instructions
This manual provides operating instructions for the Panasonic WV-BP500 series of CCTV cameras. It details major operating controls such as auto iris selection, electronic light control (ELC), and backlight compensation settings to optimize image quality in various lighting conditions.
The document also covers physical connections, including the use of standard C-mount or Special C-mount lenses, flange-back adjustment procedures, and power requirements for both 120V AC and 24V AC models. It includes safety precautions regarding moisture exposure and electrical shock hazards.
Panasonic WV-BP50 specifications
| Pick-up Device | Interline Transfer CCD |
|---|---|
| Scanning Area | 4.8 (H) x 3.6 (V) mm |
| Scanning System | 2: 1 interlace |
| Horizontal Resolution | 380 lines |
| Lens Mount | CS-mount |
| Ambient Operating Temperature | 10°C - +50°C |
| Dimensions (without lens) | 71 (W) x 65 (H) x 125.5 (D) mm |
| Weights (without lens) | 0.47 kg |
All Panasonic WV-BP50 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum length for an RG-59/U coaxial cable?
The maximum length for an RG-59/U coaxial cable is 200 meters (660 feet).
What power source is required for the WV-BP504 model?
The WV-BP504 requires a 24V AC 60 Hz input.
From: Panasonic WV-BP500/WV-BP504 CCTV Camera Operation Instructions
Can the camera be operated in wet areas?
No, users should not expose the appliance to rain or moisture and must take immediate action if it becomes wet.
From: Panasonic WV-BP500/WV-BP504 CCTV Camera Operation Instructions
