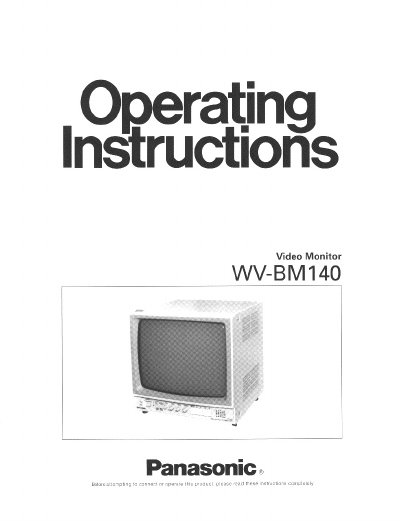

Panasonic WV-BM140 Video Monitor Instructions
The Panasonic WV-BM140 is a desktop closed-circuit video monitor designed for surveillance applications. It supports up to four specified cameras connected via coaxial cables, with the capability to expand to seven cameras using the optional WV-AD110A extension unit. The monitor features a 14-inch diagonal screen and allows for sequential or manual switching between camera inputs.
Read onlinePanasonic WV-BM140 specifications
| Screen Size | 14" diagonal screen (13" diagonal actual visual size) |
|---|---|
| Power Input | 120V AC 60 Hz |
| Operating Temperature | -10°C - + 50°C |
| Operating Humidity | below 90% |
| Camera Capacity | Up to four specified cameras |
All Panasonic WV-BM140 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many cameras can be connected to this monitor?
Up to four specified cameras can be connected directly, or up to seven by using the camera extension unit WV-AD110A.
What is the function of the STD BY mode?
In STD BY mode, the camera picture does not appear on the monitor during sequential switching, but the signal is still supplied to the REC OUT connector.
What type of cable is recommended for video connections?
A 75-ohm coaxial cable such as RG-59, RG-6/U, or RG-11/U should be used.
Can this monitor be rack-mounted?
Yes, it can be rack mounted with optional rack angle brackets.
