Start here

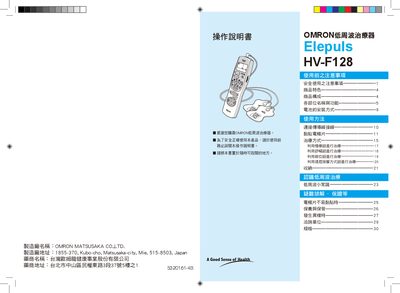

Omron Elepuls HV-F128 Low Frequency Therapy Device Operating Manual
This operating manual explains how to safely use the Omron Elepuls HV-F128 low‑frequency therapy device. It includes safety warnings, product features, component list, and detailed instructions for installing batteries, connecting the conductive leads, and applying the electrode patches.
The guide also describes the four treatment modes (Slow, Comfort, Area, and Massage), advanced stimulation settings, maintenance, storage, troubleshooting steps, and the technical specifications of the device. This manual is written in Chinese.
Omron HV-F128 specifications
| Power supply voltage | DC 3 V (two AA alkaline dry cells) |
|---|---|
| Battery life (weak mode) | ≈ 3 months with 1 × 15 min daily use |
| Battery life (strong mode) | ≈ 2 months with 1 × 15 min daily use |
| Output frequency | ≈ 1 Hz ~ 1200 Hz |
| Operating temperature / humidity | +10 °C ~ +40 °C, 30 %RH ~ 85 %RH |
| Storage temperature / humidity | -20 °C ~ +60 °C, 10 %RH ~ 95 %RH |
| Dimensions | 60 mm × 199 mm × 21 mm (W × H × D) |
| Weight | ≈ 155 g (including batteries) |
| Massage pad size | 64 mm × 83 mm × 1.1 mm |
| Accessories | Cable (1), 2 massage pads, 2 trial AA batteries, soft bag, user manual |
Source: Omron HV-F128 Low-Frequency Treatment Device User Manual
All Omron HV-F128 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How often should the batteries be replaced?
Replace the batteries after about three months of daily 15‑minute weak‑mode use, or after about two months of daily 15‑minute strong‑mode use.
From: Omron HV-F128 Low-Frequency Treatment Device User Manual
Can the device be used in the bathroom or while showering?
No. The manual warns not to use the device in high‑humidity places such as bathrooms or while bathing, as it may cause strong electric shock.
From: Omron HV-F128 Low-Frequency Treatment Device User Manual
What batteries does the HV‑F128 require?
It uses two 7‑size alkaline dry cells to provide a DC 3 V supply.
From: Omron HV-F128 Low-Frequency Therapy Device User Manual
How long can the device be used in one session?
Each session should not exceed 15 minutes; the unit automatically shuts off after 15 minutes.
From: Omron HV-F128 Low-Frequency Therapy Device User Manual
How do I replace the batteries?
Open the back cover of the device, insert two 4‑size alkaline batteries as shown, and close the cover.
From: Omron Elepuls HV-F128 Low Frequency Therapy Device Operating Manual
How long does the device run before it shuts off automatically?
The device automatically turns off after 15 minutes of continuous treatment.
From: Omron Elepuls HV-F128 Low Frequency Therapy Device Operating Manual
