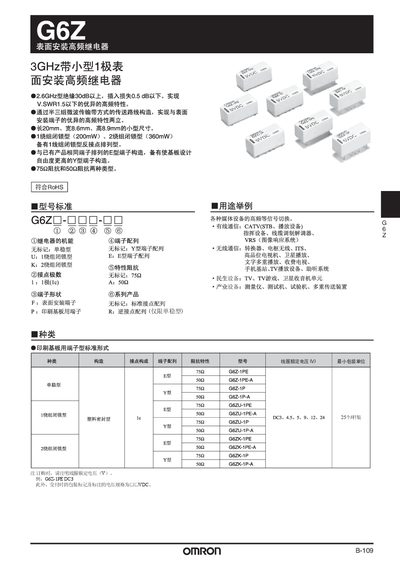

This document is the product manual of Omron G6Z series surface-mount high-frequency relay, mainly introducing the product features, specifications, performance, applications and other information.
The Omron G6Z series are surface‑mount high‑frequency relays designed for applications such as media equipment, CATV, and communication devices. The document describes the relay types, terminal configurations (E, Y, and standard), and the electrical characteristics required for reliable high‑frequency performance.
Key information includes mechanical dimensions (20 mm × 8.6 mm × 8.9 mm), coil voltage options (DC 3 V, 4.5 V, 5 V, 9 V, 12 V, 24 V), insertion loss below 0.5 dB, VSWR below 1.5, contact resistance under 100 mΩ, and recommended soldering temperatures and packaging formats. This manual is written in Chinese.
| Overall size | 20 mm × 8.6 mm × 8.9 mm |
|---|---|
| VSWR | ≤ 1.5 |
| Contact resistance | ≤ 100 mΩ |
| Operate time | ≤ 10 ms |
| Mechanical life | ≥ 1 000 000 cycles |
The maximum contact voltage is AC 30 V or DC 30 V.
