OMRON G6Z Surface mount high-frequency relay is a small, light, high-voltage, high-frequency characteristic, high repeatability product, which can be applied to electronic devices that need high-frequency switching, such as mobile phones, tablets, laptops, digital cameras, scanners, medical equipment, etc.

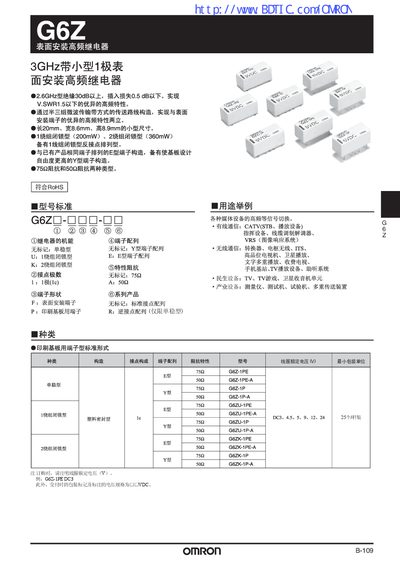

This manual provides detailed information on Omron's G6Z surface‑mount high‑frequency relays. It includes electrical specifications such as rated coil voltages, insertion loss, VSWR, contact resistance, and mechanical/electrical life limits. Dimensional data, terminal configurations, and high‑frequency performance charts are also presented.
The document describes recommended packaging (rod and tape), soldering recommendations, environmental limits, and handling precautions. It contains tables of coil resistance, operating currents, and test methods for high‑frequency characteristics, as well as guidelines for proper installation and maintenance. This manual is written in Chinese.
| Physical size | 20 mm × 8.6 mm × 8.9 mm |
|---|---|
| Maximum operating frequency | 2.6 GHz |
| VSWR (2.6 GHz version) | < 1.5 |
| Contact resistance | < 100 mΩ |
| Mechanical life | > 1 000 000 cycles |
| Electrical life (AC 30 V 10 mA) | > 300 000 cycles |
| Rod packaging quantity | 25 relays per rod |
| Tape packaging quantity | 300 relays per roll |
