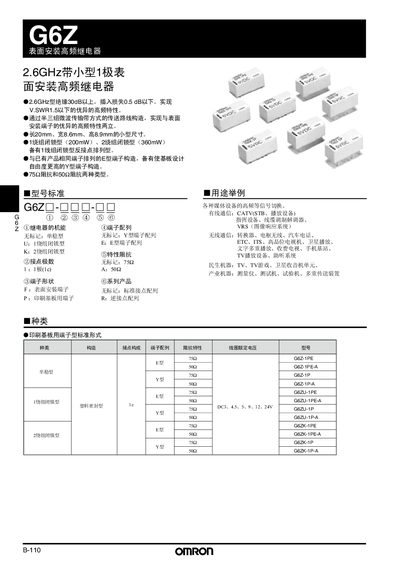

This document introduces a series of high-frequency relays, including their features and characteristics such as frequency range, insertion loss, impedance characteristics, and size. The relays are available in various types, including latching type, monostable type, and surface-mount type, with both 75Ω and 50Ω impedance options.
The document describes the mechanical dimensions, electrical ratings, and high‑frequency performance of the G6Z series surface‑mount relays. It includes detailed tables of coil voltage options, contact resistance, insertion loss, VSWR, and environmental limits.
Additional sections cover packaging formats (rod and tape), recommended soldering conditions, handling precautions, and test methods for high‑frequency characteristics. The manual also provides wiring diagrams and mounting guidelines for PCB integration. This manual is written in Chinese.
| Overall size | 20 mm × 8.6 mm × 8.9 mm |
|---|---|
| Maximum contact current | 0.5 A |
| Maximum contact voltage | AC 30 V, DC 30 V |
| Insertion loss (2.6 GHz) | ≤ 0.5 dB |
| VSWR (2.6 GHz) | ≤ 1.5 |
| Tape packaging density | 300 relays per tape |
| Rod packaging length | 530 mm (excluding fixture) |
| Recommended soldering temperature | ≈ 250 °C (260 °C for DWS) |
The relay is rated for a maximum contact current of 0.5 A.
A tape can hold up to 300 relays.
Use a soldering temperature of about 250 °C (260 °C for DWS processes).
The insertion loss is 0.5 dB or less.
