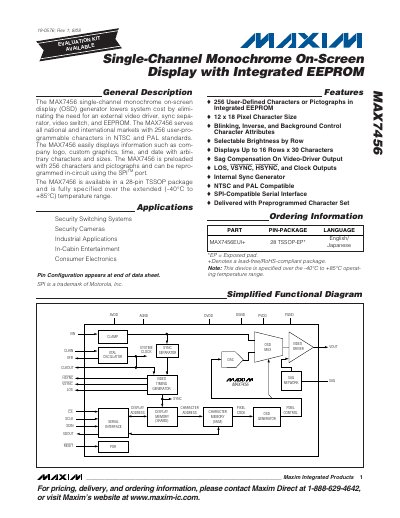

Maxim MAX7456 Single-Channel Monochrome On‑Screen Display Datasheet
The MAX7456 single‑channel monochrome on‑screen display (OSD) generator integrates a video driver, sync separator, EEPROM and SPI interface to create user‑defined graphics on NTSC or PAL composite video. It provides 256 pre‑loaded characters and allows re‑programming of up to 256 custom 12 × 18‑pixel characters, with up to 16 rows × 30 columns displayed.
The device operates from three independent 5 V supplies (AVDD, DVDD, PVDD) over –40 °C to +85 °C, and offers TTL sync outputs (VSYNC, HSYNC, LOS) and a clock output for daisy‑chaining multiple MAX7456 parts. Layout guidelines and an evaluation kit are included to aid PCB design.
Maxim MAX7456 specifications
| Supply Voltage (Analog/Digital/Driver) | 4.75 V to 5.25 V |
|---|---|
| Operating Temperature Range | -40 °C to +85 °C |
| Character Size | 12 × 18 pixels |
| Display Capacity | 16 rows × 30 characters |
| User‑Defined Characters | 256 characters or pictographs |
| Clock Frequency | 27 MHz |
| Package Type | 28‑pin TSSOP |
Source: Maxim MAX7456 Single-Channel Monochrome On-Screen Display Datasheet
All Maxim MAX7456 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the MAX7456?
The analog, digital and driver supplies must be between 4.75 V and 5.25 V.
From: Maxim MAX7456 Single-Channel Monochrome On-Screen Display Datasheet
How many user‑defined characters can be stored in the MAX7456?
Up to 256 user‑defined characters or pictographs can be stored in the integrated EEPROM.
From: Maxim MAX7456 Single-Channel Monochrome On-Screen Display Datasheet
