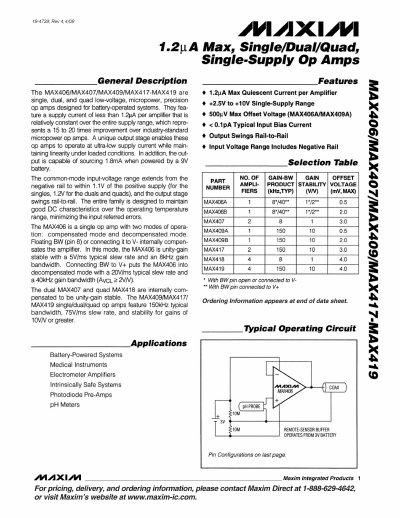

1.2µA Max, Single/Dual/Quad, Single-Supply Op Amps
The MAX406, MAX407, MAX409, MAX417, MAX418 and MAX419 are low‑power (1.2 µA max) single‑supply operational amplifiers available in single, dual and quad configurations. They are designed for a wide range of applications requiring low quiescent current and various temperature specifications.
The series is offered in multiple package types, including 8‑lead Plastic DIP, SO and CERDIP, as well as 14‑lead versions. Detailed ordering information, package codes and revision history are provided, and the latest package outlines can be obtained from Maxim’s website.
| Quiescent Current | 1.2 µA max |
|---|---|
| Operating Temperature Range (standard) | 0 °C to +70 °C |
| Operating Temperature Range (extended) | -40 °C to +85 °C |
| Operating Temperature Range (rugged) | -55 °C to +125 °C |
The MAX406 series has a maximum quiescent current of 1.2 µA.
Package outlines and land patterns are available on Maxim’s website at www.maxim-ic.com/packages.
