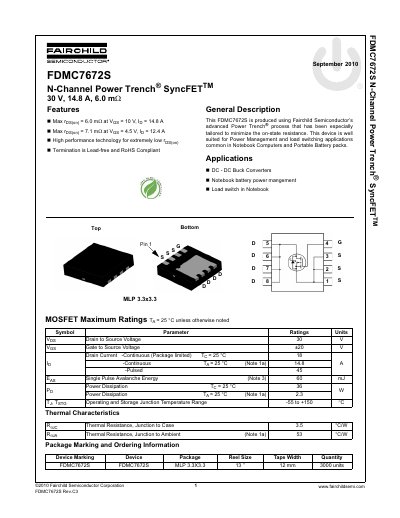

The FDMC7672S is a high-performance N-channel power transistor manufactured by Fairchild Semiconductor. It features extremely low on-state resistance and is suitable for power management and load switching applications common in notebook computers and portable battery packs.
The FDMC7672S is an N-Channel Power Trench SyncFET produced using Fairchild Semiconductor's advanced process to minimize on-state resistance. It is designed for applications such as DC-DC Buck Converters, notebook battery power management, and load switches in notebook computers. The device features a lead-free and RoHS-compliant termination.
| Drain to Source Voltage | 30 V |
|---|---|
| Continuous Drain Current | 14.8 A |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance, Junction to Case | 3.5 °C/W |
| Thermal Resistance, Junction to Ambient | 53 °C/W |
| Static Drain to Source On Resistance (Vgs=10V, Id=14.8A) | 59 mΩ |
| Package Type | MLP 3.3x3.3 |
The device is well suited for Power Management and load switching applications common in Notebook Computers and Portable Battery packs.
Yes, the termination is lead-free and RoHS Compliant.
The maximum continuous drain current is 14.8 A.
