FDMA1027PT is a dual P-channel PowerTrench® MOSFET with a rated voltage of -20V and a rated current of -3A. This device is specially designed for battery charge switch applications in cellular handsets and other ultra-portable devices. It features low thermal resistance and bi-directional current flow.

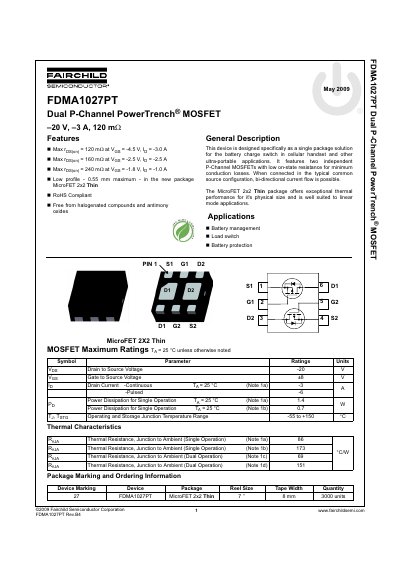

The document describes the Fairchild Semiconductor FDMA1027PT, a Dual P-Channel PowerTrench MOSFET. It is specifically designed as a single package solution for battery charge switches in cellular handsets and other ultra-portable applications.
Key features include two independent P-Channel MOSFETs with low on-state resistance to minimize conduction losses. The device supports bi-directional current flow when connected in a typical common source configuration. It is housed in the MicroFET 2x2 Thin package, which offers exceptional thermal performance for its physical size and is suitable for linear mode applications.
| Drain to Source Voltage (VDS) | -20 V |
|---|---|
| Gate to Source Voltage (VGS) | +8 V |
| Continuous Drain Current (ID) | 3 A |
| Operating Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance (Junction-to-Ambient) | 69 °C/W |
The device is designed for battery management and load switch applications.
Yes, the device is RoHS Compliant and free from halogenated compounds and antimony oxides.
