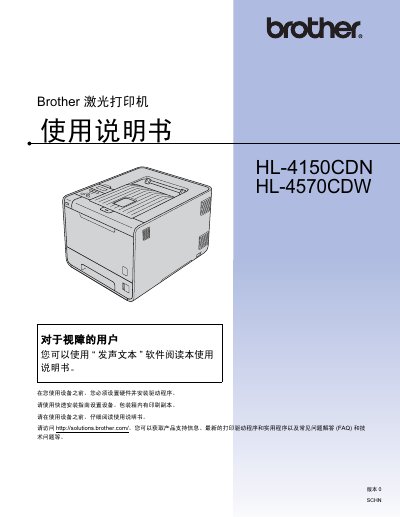

Brother HL-4150CDN / HL-4570CDW User Manual
This manual covers everything needed to install and use the Brother HL-4150CDN and HL-4570CDW laser printers, including hardware setup, driver installation, printing methods, and optional accessories. It also includes detailed sections on LCD panel functions, paper handling, and network configuration.
Additional chapters provide regular maintenance procedures, consumable replacement, and a comprehensive troubleshooting guide with error codes and solutions. Appendices list technical specifications, computer requirements, and a FAQ for quick reference. This manual is written in Chinese.
Brother HL-4150CDN specifications
| Supported paper weight | 70 – 90 g/m² |
|---|---|
| Paper thickness range | 80 – 110 µm |
| Paper roughness | greater than 20 sec. |
| Brightness (paper) | greater than 80 % |
| Opacity (paper) | greater than 85 % |
All Brother HL-4150CDN documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
How do I replace the toner cartridge?
Remove the protective cover, then insert the new toner cartridge into the drum unit, avoiding contact with the shaded area of the cartridge.
What should I do if a paper jam occurs?
Open the indicated paper tray, carefully remove the jammed paper, and ensure the tray contains only the selected paper size before restarting the print job.
What safety precaution should be taken before plugging in the printer?
Do not plug the power cord into an AC source before following the installation instructions.
Which USB type does the HL‑4150CDN use?
It uses a USB 2.0 (AB type) interface.
