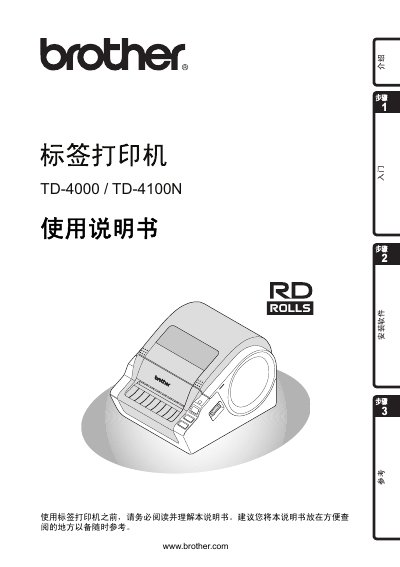

Brother TD-4000/TD-4100N Label Printer User Manual
This manual introduces the Brother TD-4000/TD-4100N label printer, covering safety precautions, component descriptions, and step‑by‑step installation of software, power, and the RD series ribbon. It also explains label‑making procedures, LED indicators, and basic operation commands.
Further sections detail troubleshooting, main technical specifications, accessory information, and recommended consumables. The document helps users achieve reliable printing while complying with environmental and safety regulations. This manual is written in Chinese.
Brother TD-4000/TD-4100N specifications
| Print speed | 110 mm/s (USB) |
|---|---|
| Print resolution | 300 dpi (1296 dots) |
| Maximum print width | 98.6 mm |
| Minimum print length | 25.4 mm |
| Power supply | 220 V 50 Hz 1.1 A AC |
| Dimensions (W×D×H) | 173 mm × 229 mm × 158 mm |
| Weight (TD‑4000) | ≈1.81 kg |
| Weight (TD‑4100N) | ≈1.83 kg |
| Memory for data storage | 2048 KB |
| Interfaces | USB, RS‑232C serial, 10/100BASE‑TX Ethernet |
| Operating temperature | 10 °C – 35 °C |
| Operating humidity | 20 % – 80 % (non‑condensing) |
All Brother TD-4000/TD-4100N documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Why does the printer print intermittently over USB and how can I fix it?
Set the print mode to buffer printing in Windows (Control Panel → Printer and Devices → Printer Properties → General → Print Preferences → select “Print after receiving one page”).
What type of label ribbon should be used with the TD‑4000/TD‑4100N?
Only Brother original heat‑sensitive ribbons are recommended for optimal performance.
