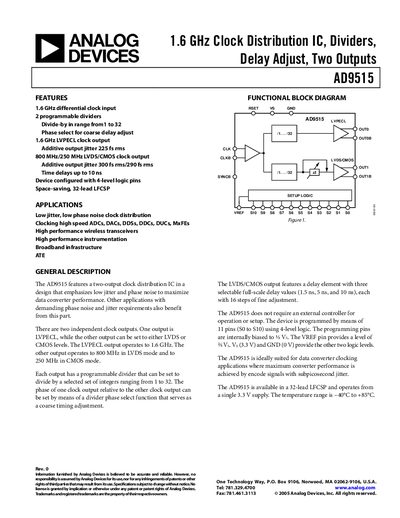

Analog Devices AD9515 Datasheet
The AD9515 is a two‑output clock distribution integrated circuit designed for low jitter and low phase‑noise applications. It features a 1.6 GHz differential LVPECL output and a second output selectable as LVDS (up to 800 MHz) or CMOS (up to 250 MHz), each with programmable integer dividers from 1 to 32 and coarse phase‑adjust capability.
Typical applications include high‑speed data‑converter clocking, wireless transceivers, instrumentation, and broadband infrastructure. The device is supplied in a 32‑lead LFCSP package and operates from a single 3.3 V supply over a temperature range of –40 °C to +85 °C.
Analog Devices AD9515 specifications
| Maximum input frequency | 1.6 GHz |
|---|---|
| Input sensitivity (single‑ended) | 150 mV p‑p |
| LVPECL additive output jitter | 225 fs rms |
Source: Analog Devices AD9515 Datasheet
