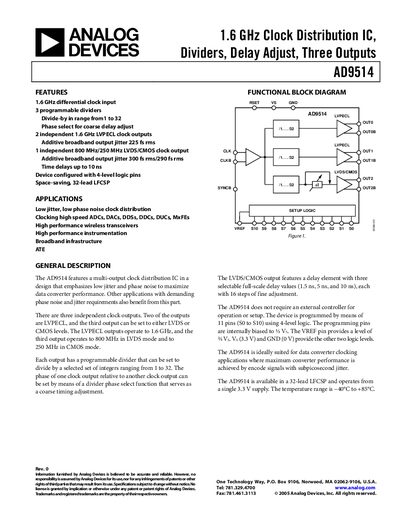

Analog Devices AD9514 Clock Distribution IC Datasheet
The AD9514 clock distribution IC from Analog Devices provides three independent outputs—two LVPECL up to 1.6 GHz and one selectable LVDS (800 MHz) or CMOS (250 MHz). It features programmable dividers (1‑32), coarse phase‑select delay, and fine‑step delay adjustment for precise timing.
The device is programmed via 11 pins (SO to S10) with 4‑level logic, requires no external controller, and operates from a single 3.3 V supply over a temperature range of –40 °C to +85 °C. Detailed specifications, timing characteristics, and measurement setups are provided for designers.
Analog Devices AD9514 specifications
| Clock Input Frequency Range | 0 – 16 GHz |
|---|---|
| Clock Input Sensitivity | 150 mV p‑p |
| LVPECL Output Frequency | 1.6 GHz |
| LVDS Output Frequency | 800 MHz |
| Additive Phase Noise @10 Hz | -125 dBc/Hz |
| Operating Temperature Range | -40 °C to +85 °C |
Source: Analog Devices AD9514 Clock Distribution IC Datasheet
All Analog Devices AD9514 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range of the AD9514?
The device operates from –40 °C to +85 °C.
How is the AD9514 programmed?
The device is programmed via 11 pins (SO to S10) using 4‑level logic and does not require an external controller.
What is the maximum input frequency for the AD9514?
The AD9514 accepts clock inputs up to 1.6 GHz.
How many independent clock outputs does the AD9514 provide?
It provides three independent clock outputs: two LVPECL and one LVDS/CMOS.
