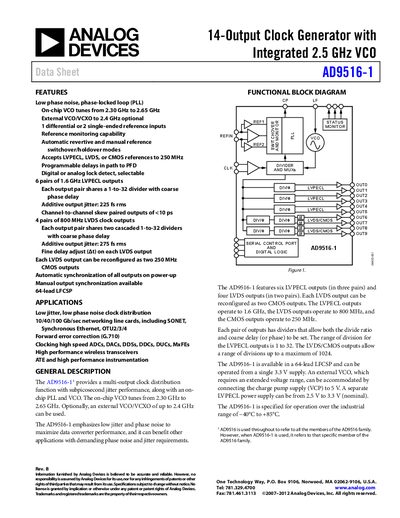

Analog Devices AD9516-1 Datasheet
The AD9516-1 provides multi‑output clock distribution with sub‑picosecond jitter, an on‑chip PLL and VCO that tunes from 2.30 GHz to 2.65 GHz. It supports differential LVPECL (up to 1.6 GHz), LVDS (up to 800 MHz) and single‑ended CMOS (up to 250 MHz) outputs, each with programmable division and fine delay.
The device operates from a single 3.3 V supply, with an optional external VCO/VCXO requiring a 5 V charge‑pump supply. It is specified for industrial temperature range –40 °C to +85 °C and includes serial control port, lock‑detect, and various power‑down modes.
Analog Devices AD9516-1 specifications
| On‑chip VCO frequency range | 2.30 GHz – 2.65 GHz |
|---|---|
| CMOS output maximum frequency | 250 MHz |
| Operating temperature range | ‑40 °C to +85 °C |
| Supply voltage | 3.3 V (single supply) |
All Analog Devices AD9516-1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the frequency range of the on‑chip VCO?
The on‑chip VCO tunes from 2.30 GHz to 2.65 GHz.
What temperature range is the AD9516-1 rated for?
The device is rated for –40 °C to +85 °C operation.
What is the maximum frequency of the LVPECL outputs?
The LVPECL outputs can operate up to 2.95 GHz.
How many LVDS output pairs does the AD9516-1 provide?
It provides two pairs of LVDS clock outputs, for a total of four LVDS signals.
