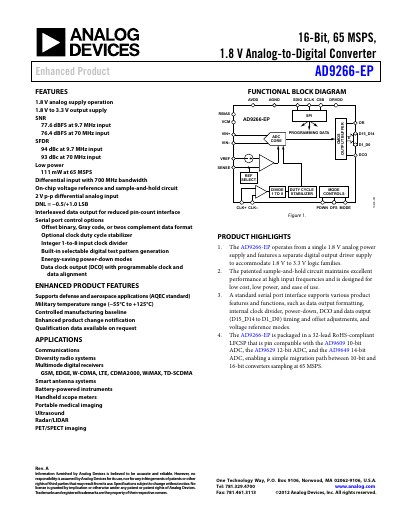

Analog Devices AD9266-EP 16-Bit ADC Datasheet
Datasheet 12 pages · 210 KB · EN
The document describes the AD9266-EP, a monolithic single-channel 1.8 V supply, 16-bit, 65 MSPS analog-to-digital converter (ADC). It features a high performance sample-and-hold circuit and an on-chip voltage reference, utilizing multistage differential pipeline architecture to provide 16-bit accuracy at full data rates.
Read onlineAnalog Devices AD9266 specifications
| Resolution | 16 Bits |
|---|---|
| Sample Rate | 65 MSPS |
| Spurious-Free Dynamic Range (SFDR) | 93 dBc @ 70 MHz |
| Analog Input Bandwidth | 700 MHz |
| Operating Temperature Range | -55°C to +125°C |
All Analog Devices AD9266 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
