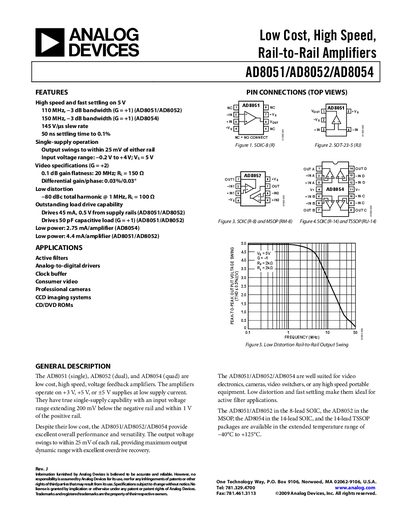

Analog Devices AD8051/AD8052/AD8054 Datasheet Rev J
The AD8051 (single), AD8052 (dual) and AD8054 (quad) are low‑cost, high‑speed voltage‑feedback amplifiers that operate from a single 3 V to 5 V supply. They provide rail‑to‑rail output swings within 25 mV of either rail, a 145 V/µs slew rate, and fast 50 ns settling to 0.1 %.
These amplifiers are suited for video electronics, active filters, analog‑to‑digital drivers, and camera applications. The document includes pin‑connection diagrams, detailed specifications, typical performance curves, and an ordering guide for the various SOIC, MSOP, TSSOP and SOT‑23 packages.
Analog Devices AD8051 specifications
| Bandwidth (G=+1) AD8051/AD8052 | 110 MHz |
|---|---|
| Bandwidth (G=+1) AD8054 | 150 MHz |
| Slew Rate | 145 V/µs |
| Settling Time to 0.1 % | 50 ns |
| Output Current (AD8051/AD8052) | 45 mA |
All Analog Devices AD8051 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the bandwidth of the AD8051?
The AD8051 provides a –3 dB bandwidth of 110 MHz at a gain of +1.
What is the maximum output current of the AD8051?
The AD8051 can source up to 45 mA of output current.
What is the maximum output current of these amplifiers?
The devices can source up to 45 mA.
What is the –3 dB bandwidth of the AD8054 version?
The AD8054 provides a –3 dB bandwidth of 150 MHz.
