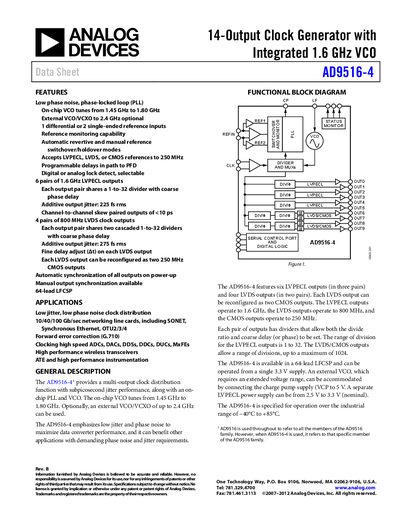

Analog Devices AD9516-4 Clock Generator Datasheet
The AD9516-4 provides a multi‑output clock distribution function with sub‑picosecond jitter performance. It includes an on‑chip PLL and VCO that tunes from 1.45 GHz to 1.80 GHz, with an optional external VCO/VCXO up to 2.4 GHz. The device offers six LVPECL outputs (three pairs) up to 1.6 GHz, four LVDS outputs (two pairs) up to 800 MHz, and four CMOS outputs up to 250 MHz, each with programmable division and coarse/fine delay.
Typical applications include high‑speed networking line cards, clocking of high‑performance ADCs/DACs, wireless transceivers, and test instrumentation where low jitter and low phase noise are critical. The AD9516-4 operates from a single 3.3 V supply and is specified for an industrial temperature range of –40 °C to +85 °C.
Analog Devices AD9516-4 specifications
| LVPECL output frequency | up to 1.6 GHz |
|---|---|
| LVDS output frequency | up to 800 MHz |
| CMOS output frequency | up to 250 MHz |
| On‑chip VCO frequency range | 1.45 GHz – 1.80 GHz |
| Phase noise at 100 kHz offset | ‑109 dBc/Hz |
| Operating temperature range | ‑40 °C to +85 °C |
| Supply voltage (Vs) | 3.3 V (typical) |
All Analog Devices AD9516-4 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the frequency range of the on‑chip VCO?
The on‑chip VCO tunes from 1.45 GHz to 1.80 GHz.
How many LVPECL output pairs does the AD9516-4 provide?
It provides six LVPECL outputs arranged as three pairs.
What is the internal VCO frequency range of the AD9516-4?
The on‑chip VCO tunes from 1.45 GHz to 1.80 GHz.
How many LVPECL outputs are provided and what is their maximum frequency?
Six LVPECL outputs (in three pairs) are available, each up to 1.6 GHz.
