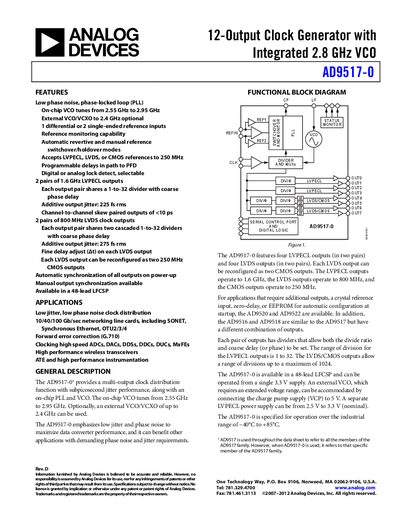

Analog Devices AD9517-0 Datasheet
The AD9517-0 is a 12‑output clock generator with an integrated 2.8 GHz VCO. It offers low phase‑noise PLL operation, selectable LVPECL, LVDS, and CMOS outputs, and supports external VCO/VCXO up to 2.4 GHz. The device includes programmable delays, automatic reference switchover, and can operate from a single 3.3 V supply.
The datasheet provides detailed electrical specifications, pin configurations, timing characteristics, and recommended application circuits. It also lists ordering information for the 48‑lead LFCSP package and outlines the device's industrial temperature range of –40 °C to +85 °C.
Analog Devices AD9517-0 specifications
| LVPECL output maximum frequency | 2950 MHz |
|---|---|
| LVDS output frequency | 800 MHz |
| CMOS output frequency | 250 MHz |
| Supply voltage (Vs) typical | 3.3 V |
| Operating temperature range | –40 °C to +85 °C |
All Analog Devices AD9517-0 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the on‑chip VCO frequency range of the AD9517-0?
The on‑chip VCO tunes from 2.55 GHz to 2.95 GHz.
What supply voltage is required for an external VCO with the AD9517-0?
The external VCO can be powered by connecting the charge‑pump supply (VCP) to 5 V.
What is the VCO frequency range of the AD9517-0?
The on‑chip VCO tunes from 2.55 GHz to 2.95 GHz.
How many LVDS outputs does the AD9517-0 provide?
It provides two pairs of LVDS outputs, for a total of four LVDS channels.
