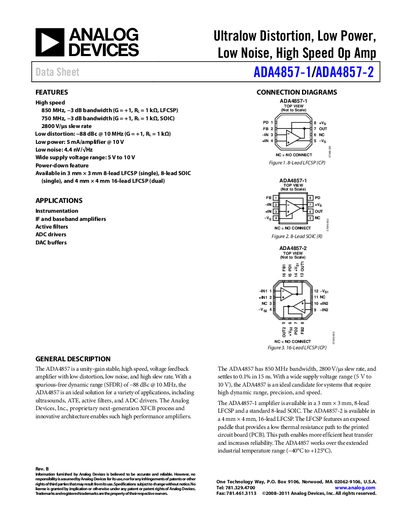

Analog Devices ADA4857-1/ADA4857-2 Datasheet
The ADA4857‑1 and ADA4857‑2 are ultra‑low distortion, low‑power, high‑speed voltage‑feedback operational amplifiers. They offer up to 850 MHz –3 dB bandwidth, 2800 V/µs slew rate, and operate from a 5 V to 10 V supply, making them suitable for instrumentation, ADC drivers, DAC buffers and active filters.
Both devices are available in surface‑mount packages: an 8‑lead LFCSP (3 mm × 3 mm) or SOIC for the ADA4857‑1, and a 16‑lead LFCSP (4 mm × 4 mm) for the ADA4857‑2. They support an industrial temperature range of –40 °C to +125 °C and include a power‑down pin for low‑standby power consumption.
Analog Devices ADA4857-1 specifications
| Supply Voltage Range | 5 V to 10 V |
|---|---|
| –3 dB Bandwidth (LFCSP/SOIC, G=+1, Vout=0.2 Vpp) | 850 MHz / 750 MHz |
| Slew Rate | 2800 V/µs |
| Quiescent Current (typical) | 5.5 mA |
| Output Current | 50 mA |
| Input Voltage Noise (100 kHz) | 4.4 nV/√Hz |
| Input Current Noise (100 kHz) | 1.5 pA/√Hz |
| Operating Temperature Range | –40 °C to +125 °C |
All Analog Devices ADA4857-1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range does the ADA4857 support?
It operates from 5 V up to 10 V.
What is the typical slew rate of the ADA4857?
The device has a slew rate of 2800 V/µs.
What is the –3 dB bandwidth of the ADA4857‑1 in LFCSP package?
The ADA4857‑1 provides an –3 dB bandwidth of 850 MHz when configured for a gain of +1 and a 0.2 Vpp output.
