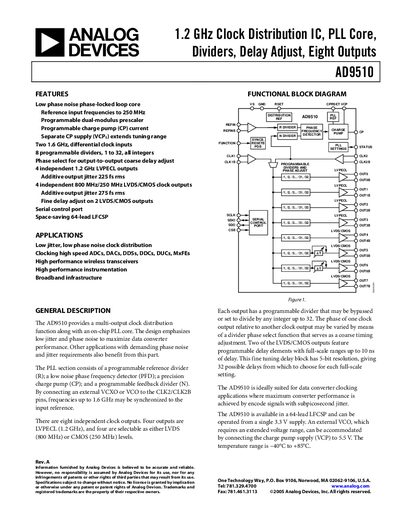

Analog Devices AD9510 Clock Distribution IC Datasheet
The AD9510 provides a multi‑output clock distribution function together with an on‑chip PLL core. It offers eight independent outputs—four LVPECL (1.2 GHz) and four selectable LVDS (800 MHz) or CMOS (250 MHz)—with programmable dividers and fine‑delay adjustment for sub‑nanosecond timing control. The device is supplied from a single 3.3 V rail, with an optional charge‑pump supply up to 5.5 V for external VCOs, and operates over –40 °C to +85 °C.
Typical applications include clocking high‑speed data converters, wireless transceivers, instrumentation, and broadband infrastructure where low phase‑noise and jitter are critical. The part is offered in a 64‑lead LFCSP package and is supported by an evaluation board for rapid prototyping.
Analog Devices AD9510 specifications
| Reference Input Frequency (REFIN) | 250 MHz |
|---|---|
| LVPECL Output Frequency | 1200 MHz |
| Additive Output Jitter (LVPECL) | 225 fs rms |
| Supply Voltage | 3.3 V (single) – VCP up to 5.5 V |
| Operating Temperature Range | –40 °C to +85 °C |
Source: Analog Devices AD9510 Clock Distribution IC Datasheet
All Analog Devices AD9510 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many clock outputs does the AD9510 provide?
The AD9510 provides eight independent clock outputs—four LVPECL and four selectable LVDS or CMOS.
What is the maximum input frequency for the reference inputs?
The reference inputs accept frequencies up to 250 MHz.
What is the input frequency range for the reference inputs?
The reference inputs accept frequencies up to 250 MHz.
How many clock outputs does the AD9510 provide and what types are available?
The AD9510 provides eight independent clock outputs: four fixed LVPECL outputs and four that can be selected as either LVDS or CMOS.
