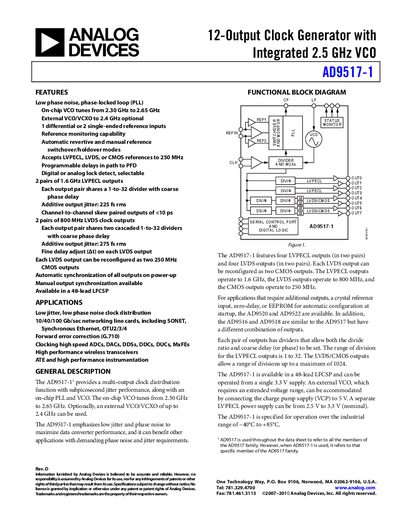

Analog Devices AD9517-1 Datasheet
The AD9517-1 is a 12‑output clock generator with an integrated 2.5 GHz VCO, offering low phase‑noise and low jitter performance for high‑speed data converters, networking, and wireless applications. It supports LVPECL, LVDS, and CMOS output formats with programmable dividers and fine‑delay adjustments.
The document provides full electrical specifications, power‑supply requirements, PLL characteristics, clock input and output parameters, timing characteristics, and package information, along with application notes and ordering details.
Analog Devices AD9517-1 specifications
| Supply voltage (Vs) | 3.3 V |
|---|---|
| On‑chip VCO frequency range | 2.30–2.65 GHz |
| LVPECL output maximum frequency | 2.95 GHz |
| LVDS output frequency | 800 MHz |
| CMOS output frequency | 250 MHz |
| Operating temperature range | -40 °C to +85 °C |
| Package | 48‑Lead LFCSP |
All Analog Devices AD9517-1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the on‑chip VCO tuning range of the AD9517‑1?
The on‑chip VCO tunes from 2.30 GHz to 2.65 GHz.
How many LVPECL and LVDS output pairs does the AD9517‑1 provide?
It provides two pairs (four outputs) of LVPECL and two pairs (four outputs) of LVDS.
What is the VCO frequency range of the AD9517-1?
The on‑chip VCO tunes from 2.30 GHz to 2.65 GHz.
How many LVPECL outputs does the AD9517-1 provide?
It provides two pairs of LVPECL outputs, for a total of four LVPECL clocks.
What supply voltage does the AD9517-1 require?
The AD9517-1 operates from a single 3.3 V supply, with an external VCO requiring a charge‑pump supply up to 5.5 V.
What is the additive output jitter for the LVPECL outputs?
The LVPECL outputs have an additive output jitter of 225 fs rms.
