Start here

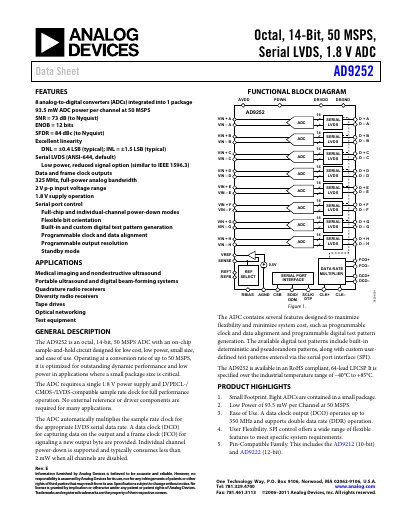

Analog Devices AD9252 14‑Bit 50 MSPS ADC Datasheet Rev E
The AD9252 is an octal, 14‑bit, 50 MSPS analog‑to‑digital converter designed for low cost, low power, and small size. It operates from a single 1.8 V supply and provides LVDS serial data output, making it suitable for medical imaging, ultrasound, and high‑speed data acquisition.
Key features include 93.5 mW power per channel at 50 MSPS, 73 dB SNR, 11.87‑bit ENOB, and flexible SPI control for power‑down and test‑pattern generation. The datasheet provides full specifications, pin configurations, timing diagrams, and mechanical dimensions.
Analog Devices AD9252 specifications
| Resolution | 14 bits |
|---|---|
| Power per channel | 93.5 mW at 50 MSPS |
| Signal‑to‑Noise Ratio (SNR) | 73 dB (fIN = 2.4 MHz) |
| Effective Number of Bits (ENOB) | 11.87 bits (fIN = 2.4 MHz) |
| Input voltage range | 2 V p‑p differential |
| Supply voltage (AVDD/DRVDD) | 1.8 V |
| Maximum clock rate | 50 MSPS |
| Standby dissipation | 89 mW |
Source: Analog Devices AD9252 14‑Bit 50 MSPS ADC Datasheet Rev E
All Analog Devices AD9252 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the power consumption per channel at 50 MSPS?
Each channel consumes 93.5 mW when operating at 50 MSPS.
From: Analog Devices AD9252 14‑Bit 50 MSPS ADC Datasheet Rev E
What is the maximum sampling rate of the AD9252?
The AD9252 can sample up to 50 MSPS.
From: Analog Devices AD9252 14‑Bit 50 MSPS ADC Datasheet Rev E
What supply voltage does the AD9252 require?
The AD9252 operates from a single 1.8 V supply (AVDD and DRVDD).
What is the maximum sampling rate of the AD9252?
The device can sample at up to 50 MSPS.
