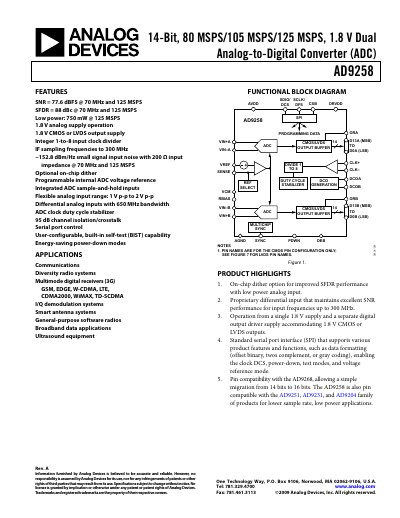

Analog Devices AD9258 14‑Bit Dual ADC Datasheet
The AD9258 is a dual, 14‑bit analog‑to‑digital converter designed for communications and high‑speed data‑receiver applications. It supports sample rates of 80, 105 and 125 MSPS, operates from a single 1.8 V analog supply and a separate 1.8 V digital output driver supply, and provides both CMOS and LVDS output options.
Configuration is performed via a 3‑wire SPI‑compatible serial interface, and the device includes built‑in self‑test (BIST) features, power‑down modes, and a duty‑cycle stabilizer for optimal performance across its operating range. Detailed specifications, pin descriptions, timing diagrams and design guidelines are provided throughout the document.
Analog Devices AD9258 specifications
| Resolution | 14 bits |
|---|---|
| Maximum Sample Rate | 125 MSPS |
| Power Consumption (125 MSPS) | 750 mW |
| Analog Input Range | 1 V p‑p to 2 V p‑p |
| Output Interface | 1.8 V CMOS or LVDS |
| Signal‑to‑Noise Ratio (70 MHz, 125 MSPS) | 77.6 dBFS |
| Spurious‑Free Dynamic Range (70 MHz, 125 MSPS) | 88 dBc |
All Analog Devices AD9258 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the AD9258?
The device supports sample rates up to 125 MSPS (also 80 MSPS and 105 MSPS).
How can power consumption be reduced in the AD9258?
The AD9258 includes power‑down modes and can operate at as low as 750 mW at 125 MSPS.
What is the maximum sample rate of the AD9258?
The AD9258 can sample at up to 125 MSPS.
How much power does the AD9258 consume?
Its DC input power ranges from about 462 mW at 80 MSPS to 777 mW at 125 MSPS.
