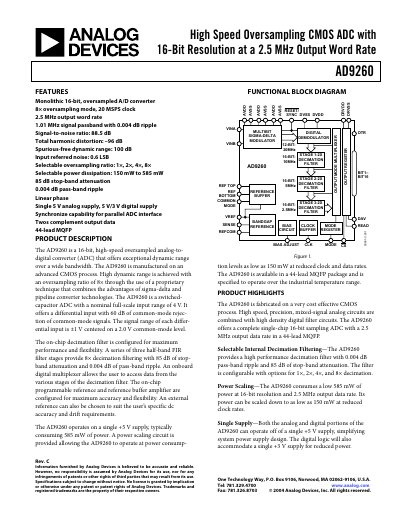

Analog Devices AD9260 High Speed Oversampling CMOS ADC Datasheet Rev C
The AD9260 is a 16‑bit, high‑speed oversampling analog‑to‑digital converter offering a 2.5 MHz output word rate and selectable decimation ratios of 1×, 2×, 4×, and 8×. It operates from a single +5 V analog supply and a +3 V digital supply, with power consumption ranging from 150 mW to 585 mW depending on clock speed.
The datasheet provides detailed specifications, including clock input range, DC and AC performance, digital filter characteristics, pin configurations, and evaluation‑board usage. It also includes typical performance curves, thermal characteristics, and ordering information for the 44‑lead MQFP package.
Analog Devices AD9260 specifications
| Resolution | 16 bits |
|---|---|
| Output word rate | 2.5 MHz |
| Power consumption (typical, 16‑bit, 2.5 MHz) | 585 mW |
| Supply voltages | AVDD +5 V, DVDD +3 V, DRVDD +3 V |
| Input span (differential) | ±1 V centered on 2.0 V common‑mode |
Source: Analog Devices AD9260 High Speed Oversampling CMOS ADC Datasheet Rev C
All Analog Devices AD9260 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the output word rate of the AD9260?
The AD9260 provides a 2.5 MHz output word rate.
From: Analog Devices AD9260 High Speed Oversampling CMOS ADC Datasheet Rev C
How much power does the AD9260 consume at 16‑bit resolution and 2.5 MHz output?
Typical power consumption is 585 mW.
From: Analog Devices AD9260 High Speed Oversampling CMOS ADC Datasheet Rev C
How much power does the AD9260 consume at full speed?
At full 16‑bit resolution and 2.5 MHz output rate, the AD9260 consumes about 585 mW typical.
What supply voltages are required for the AD9260?
The device operates from a single +5 V analog supply (AVDD) and optional +3 V digital supplies (DVDD and DRVDD).
