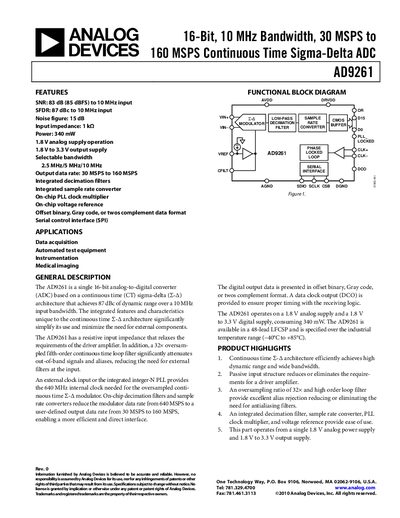

Analog Devices AD9261 16‑Bit 30‑160 MSPS ADC Datasheet
The AD9261 is a single‑channel 16‑bit analog‑to‑digital converter based on a continuous‑time sigma‑delta architecture. It provides up to 160 MSPS output data rates, selectable bandwidths of 2.5 MHz, 5 MHz, or 10 MHz, and integrates a PLL clock multiplier, voltage reference, and decimation filters, reducing the need for external components.
Typical applications include data acquisition, automated test equipment, instrumentation, and medical imaging. The device operates from a 1.8 V analog supply and a 1.8‑3.3 V digital supply, consuming 340 mW (PLL disabled) and is available in a 48‑lead LFCSP package rated for industrial temperature range (‑40 °C to +85 °C).
Analog Devices AD9261 specifications
| Resolution | 16 bits |
|---|---|
| Analog Input Bandwidth | 10 MHz |
| Signal‑to‑Noise Ratio (SNR) | 83 dB (85 dBFS) to 10 MHz input |
| Spurious‑Free Dynamic Range (SFDR) | 87 dBc to 10 MHz input |
| Power Consumption (PLL disabled) | 340 mW |
| Package | 48‑Lead LFCSP (CP‑48‑1) |
Source: Analog Devices AD9261 16‑Bit 30‑160 MSPS ADC Datasheet
All Analog Devices AD9261 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output data rate of the AD9261?
The AD9261 can output data at rates up to 160 MSPS.
From: Analog Devices AD9261 16‑Bit 30‑160 MSPS ADC Datasheet
What supply voltages does the AD9261 require?
It operates from a 1.8 V analog supply and a digital supply of 1.8 V to 3.3 V.
From: Analog Devices AD9261 16‑Bit 30‑160 MSPS ADC Datasheet
What supply voltages does the AD9261 require?
It operates from a 1.8 V analog supply and a 1.8 V to 3.3 V digital supply.
How much power does the AD9261 consume?
The device consumes 375 mW of power.
