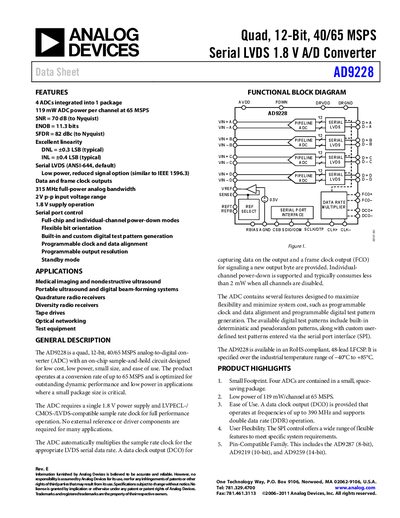

Analog Devices AD9228 12‑Bit ADC Datasheet
The AD9228 is a quad, 12‑bit ADC that operates at up to 65 MSPS and delivers 119 mW per channel at full speed. It features LVDS serial output, programmable clock and data alignment, and built‑in digital test pattern generation, all powered from a single 1.8 V supply.
Designed for medical imaging, ultrasound, quadrature radio receivers, optical networking and test equipment, the device is offered in a RoHS‑compliant 48‑lead LFCSP and operates over an industrial temperature range of –40 °C to +85 °C.
Analog Devices AD9228 specifications
| Resolution | 12 bits |
|---|---|
| Maximum Sampling Rate | 65 MSPS |
| Power per Channel | 119 mW @ 65 MSPS |
| Analog Bandwidth | 315 MHz (full‑power) |
| Input Voltage Range | 2 V p‑p differential |
| Supply Voltage | 1.8 V (AVDD, DRVDD) |
| Total Power Dissipation | 335 mW (typical) |
All Analog Devices AD9228 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the AD9228?
The AD9228 can operate at up to 65 MSPS.
What supply voltage does the AD9228 require?
It requires a single 1.8 V supply for both AVDD and DRVDD.
What is the maximum sample rate of the AD9228?
The AD9228 can operate at up to 65 MSPS.
What supply voltage does the AD9228 require?
It requires a single 1.8 V supply for both AVDD and DRVDD.
What supply voltage does the AD9228 require?
The ADC requires a single 1.8 V power supply.
What is the maximum conversion rate of the AD9228?
It can operate at up to 65 MSPS.
