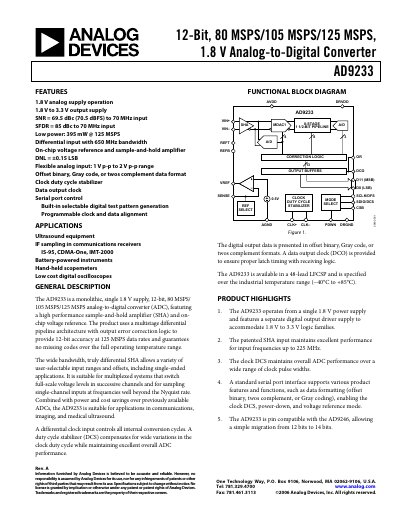

Analog Devices AD9233 12‑Bit ADC Datasheet
The AD9233 is a monolithic, 12‑bit analog‑to‑digital converter that operates from a single 1.8 V analog supply and a digital supply of 1.8 V to 3.3 V. It offers up to 125 MSPS sampling rates, a 650 MHz analog input bandwidth, and supports offset‑binary, Gray code, or two’s‑complement data formats via a standard SPI‑compatible serial port.
Key features include a low‑power consumption (as low as 40 mW in standby), built‑in voltage reference, programmable clock and data alignment, and a differential input architecture that provides excellent linearity (DNL ±0.15 LSB, INL ±1.2 LSB). The device is supplied in a 48‑lead LFCSP package and is rated for industrial temperature ranges (‑40 °C to +85 °C).
Analog Devices AD9233 specifications
| Maximum Sample Rate | 125 MSPS |
|---|---|
| Analog Supply Voltage (AVDD) | 1.8 V |
| Digital Supply Voltage (DRVDD) | 1.8 V to 3.3 V |
| Power Consumption (DC Input, 125 MSPS) | 425 mW |
| Input Bandwidth | 650 MHz |
All Analog Devices AD9233 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltages does the AD9233 require?
The AD9233 operates from a single 1.8 V analog supply (AVDD) and a digital supply (DRVDD) that can be 1.8 V to 3.3 V.
What is the maximum analog input bandwidth of the AD9233?
The device provides a 650 MHz analog input bandwidth.
What supply voltages does the AD9233 require?
The ADC operates from a single 1.8 V analog supply (AVDD) and uses a separate 2.5 V digital supply (DRVDD).
What analog input bandwidth does the device provide?
The differential input bandwidth is specified at 650 MHz.
