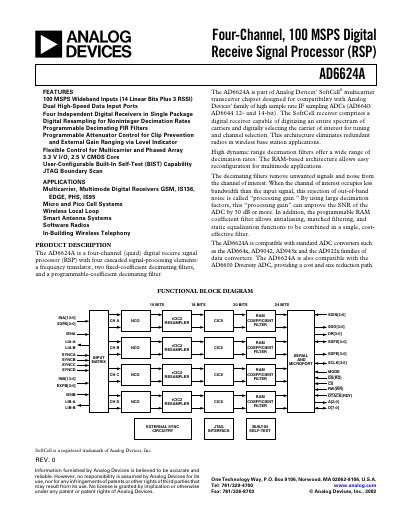

Analog Devices AD6624A Handbook
The AD6624A is a four‑channel digital receive signal processor (RSP) that digitizes a full spectrum of carriers and selects carriers of interest for tuning and channel selection. It is part of Analog Devices' SoftCell® multicarrier transceiver chipset and is compatible with high‑sample‑rate IF sampling ADCs.
The document includes a general description, functional block diagram, detailed specifications, timing diagrams, absolute maximum ratings, pin‑function tables, architecture details, input data port information, and JTAG boundary‑scan specifications. It also provides ordering information, mechanical dimensions, and example filter responses.
Analog Devices AD6624A specifications
| Logic "1" Voltage | 2.0 – 5.0 V |
|---|---|
| Logic "0" Voltage | -0.3 – +0.8 V |
| Supply Current (100 MHz) | 545 mA |
| Maximum Supply Voltage | 3.6 V |
| Input Voltage Tolerance | -0.3 V to +5.3 V |
Source: Analog Devices AD6624A Handbook
All Analog Devices AD6624A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for the AD6624A?
The maximum supply voltage is 3.6 V.
What input voltage range does the AD6624A tolerate?
It tolerates an input voltage from –0.3 V to +5.3 V.
What logic level families does the AD6624A support?
Both the inputs and outputs are compatible with 3.3 V CMOS (and TTL for outputs).
What is the maximum clock frequency for the serial port?
The slave serial port’s SCLK operating frequency is limited to 62.5 MHz.
