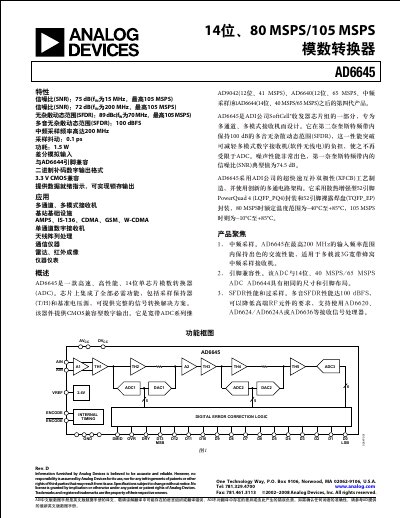

Analog Devices AD6645 14-bit 80/105 MSPS ADC Datasheet
The AD6645 is a high-speed, high-performance 14-bit single-chip analog-to-digital converter (ADC) that integrates all essential functions, including a sample-and-hold (T/H) and a reference voltage source. It provides CMOS-compatible digital output and is designed for multi-channel, multi-mode receivers such as base station infrastructure, communication instruments, radar, and infrared imaging applications.
The device features a high signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR), with low sampling jitter and low power consumption. It operates at sampling rates up to 105 MSPS with a temperature range of -10°C to +85°C, and is available in 52-lead PowerQuad 4 and 52-lead TQFP_EP packages. This manual is written in Chinese.
Analog Devices AD6645 specifications
| SNR | 75 dB (15 MHz) |
|---|---|
| SFDR | 89 dBc (70 MHz) |
| Max Sampling Rate | 105 MSPS |
| Power Consumption | 1.5 W |
| Supply Voltage AVCC | 5.0 V |
Source: Analog Devices AD6645 14-bit 80/105 MSPS ADC Datasheet
All Analog Devices AD6645 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the AD6645?
The AD6645 supports sampling rates up to 105 MSPS.
From: Analog Devices AD6645 14-bit 80/105 MSPS ADC Datasheet
Does the AD6645 include a sample-and-hold circuit?
Yes, the chip integrates all essential functions, including a sample-and-hold (T/H) and a reference voltage source.
From: Analog Devices AD6645 14-bit 80/105 MSPS ADC Datasheet
What supply voltages are required for the AD6645?
The device uses AVcc = 5 V for analog power and DVcc = 3.3 V for digital power.
Which packages are offered for the AD6645?
It is offered in a 52‑lead Low Profile Quad Flat Package (PowerQuad) and a 52‑lead Thin Quad Flat Package with exposed pad.
What temperature ranges are supported by the AD6645?
The AD6645‑80 version operates from –40 °C to +85 °C, and the AD6645‑105 version from –10 °C to +85 °C.
