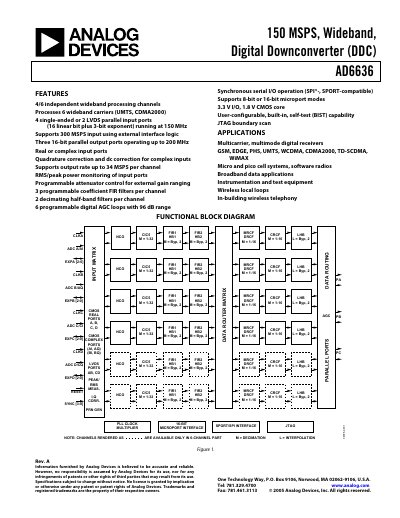

Analog Devices AD6636 Digital Downconverter Handbook
The AD6636 is a 150 MSPS wideband digital downconverter designed for IF sampling or oversampled baseband radios. It supports up to six independent processing channels and offers flexible input configurations, including four single‑ended or two LVDS ports.
Key features include three programmable RAM coefficient filters per channel, built‑in self‑test (BIST), synchronous serial I/O, and three 16‑bit parallel output ports that can run at up to 200 MHz. The datasheet provides full electrical, timing, and thermal specifications, as well as programming details for the microport and serial interfaces.
Analog Devices AD6636 specifications
| Core supply voltage (VDDCORE) rating | 2.2 V |
|---|---|
| IO supply voltage (VDDIO) rating | 4.0 V |
| Operating temperature range | -40 °C to +85 °C |
| Maximum input data rate per port | 150 MSPS |
| Maximum parallel output port clock rate | 200 MHz |
| Number of independent digital filtering channels | 6 |
| Signal‑to‑noise ratio | 101 dB |
| Spurious performance | 110 dB |
Source: Analog Devices AD6636 Digital Downconverter Handbook
All Analog Devices AD6636 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the core supply voltage rating for the AD6636?
The core supply voltage (VDDCORE) is rated at 2.2 V.
How fast can the AD6636 input ports sample data?
Each input port can accept data at up to 150 MSPS.
What is the maximum input data rate for each AD6636 input port?
Each input port can accept data at up to 150 MSPS, and two ports can be combined for up to 300 MSPS with external interface logic.
How many independent processing channels does the AD6636 provide?
The AD6636 provides six independent digital filtering channels (four‑channel version disables channels 4 and 5).
